silent electric fans EUROPLAST SINERGY SET
Construction:
- Made of ABS plastic and TPE rubber
- UV-resistant and antistatic materials with antibacterial properties (tested according to ISO 22196)
- Protection elements against vibration, noise, moisture and air leakage
- Protection against environmental influences: IP45
- Control panel with buttons and LEDs - precise tool-free adjustment (depending on model)
- Backdraft damper
Operation:
- VOC (volatile organic compounds) and humidity sensors, timer (depending on model)
- Complies with EN1506 and EN12237 (airtightness class D)
- Automatic control via sensors or wall switch (not included)
- Two operating speeds
Installation:
- Can be connected directly to a ventilation shaft or to any type of round air duct
- Vertical or horizontal installation
- Suitable for installation in Bathroom Zones 1 and 2, as well as outside these zones
- Fixing with screws
- Wire connectors without screws or tools use
- Convenient wiring
- Protection against vibration, noise, moisture and air leakage
- Application: indoor use
Electrical connection: 220-240 V~ 50-60 Hz
Ambient temperature [°C]: +5 ... +50
Nominal sizes [mm / in]: Ø100 / 4"; Ø125 / 5"; Ø150 / 6"
Made in Latvia
Silent EUROPLAST SINERGY SET exhaust electric fans are designed for people who value design and style, as well as comfort, a healthy indoor climate, and modern technological solutions. These fans effectively remove excess moisture, unpleasant odors, and polluted air, while ensuring low noise levels and energy efficiency.

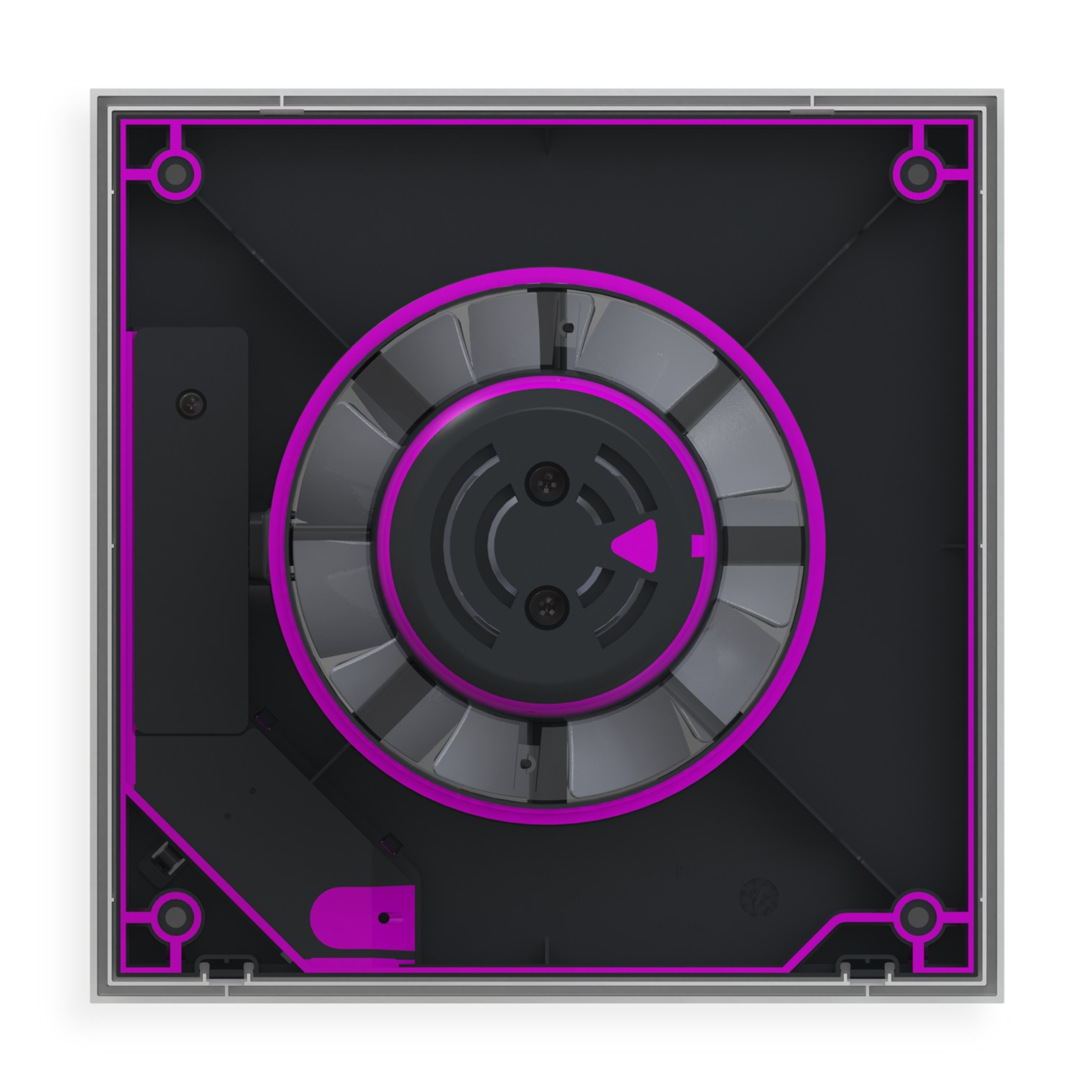

The fan construction uses high-quality ABS plastic and flexible TPE rubber elements, which reduce vibration and noise transmission. UV-resistant, antistatic, and antibacterial materials help maintain the device’s aesthetic appearance and cleanliness over the long term. Thanks to a well-thought-out design and an IP45 protection rating, the fan is safely suitable for rooms with high humidity levels.

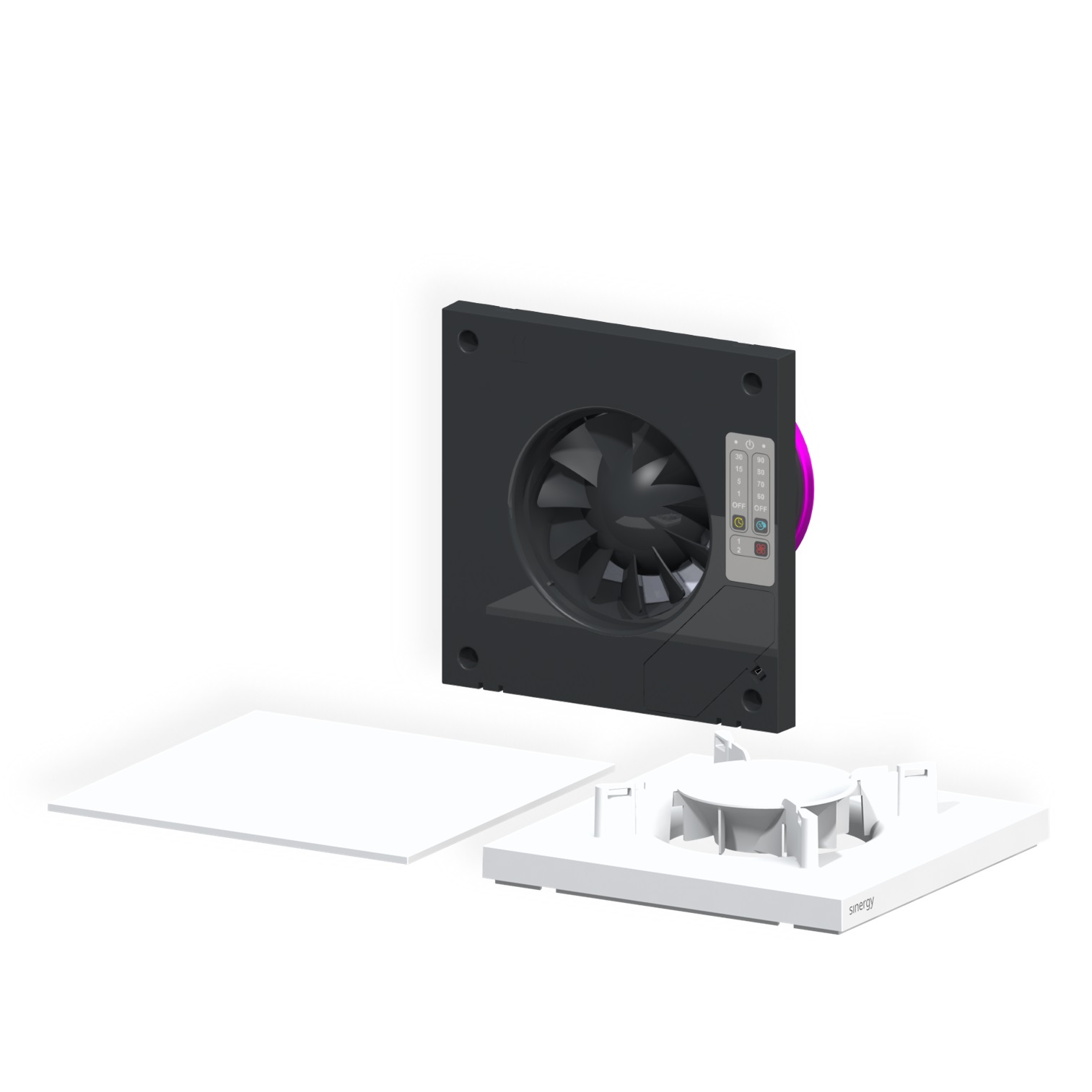

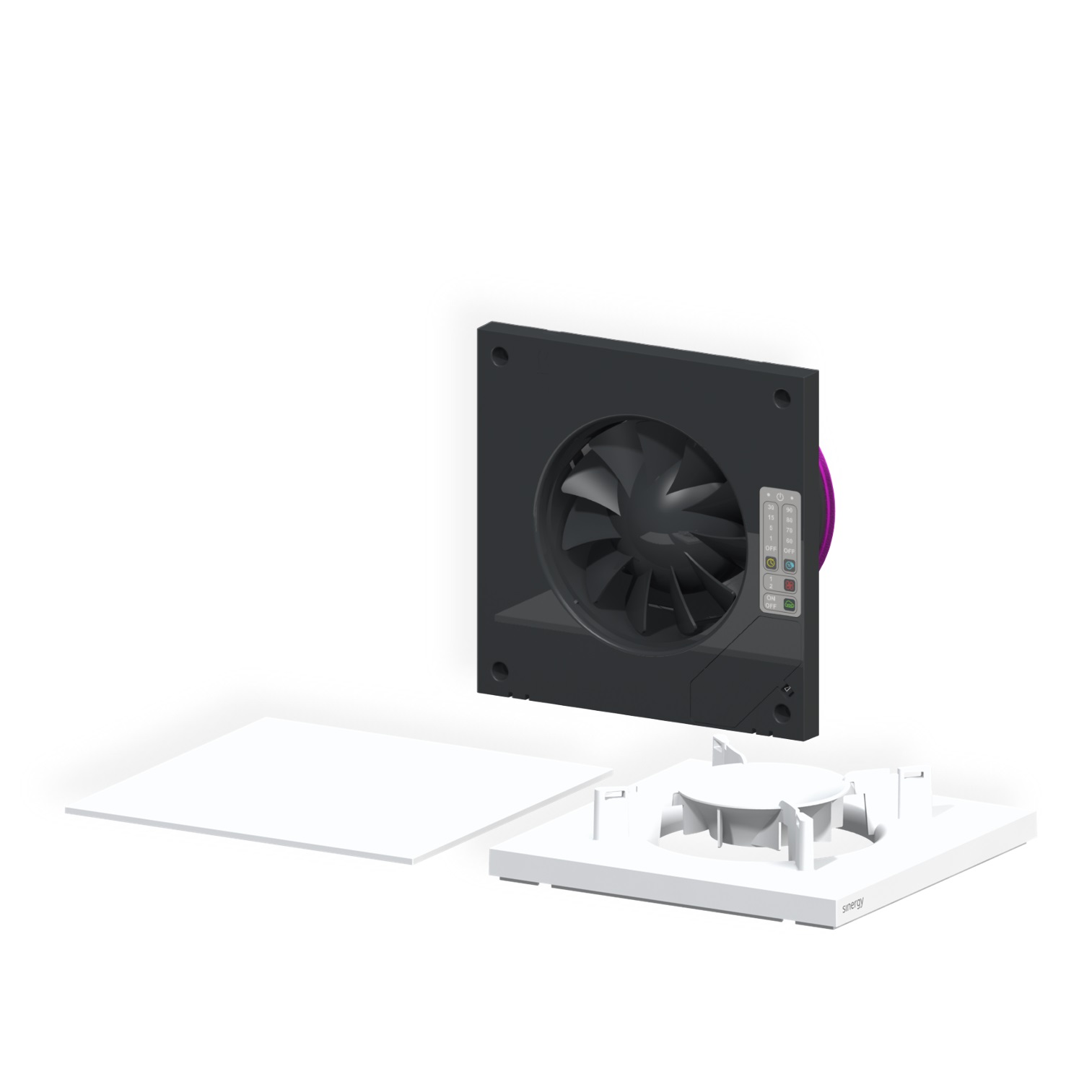

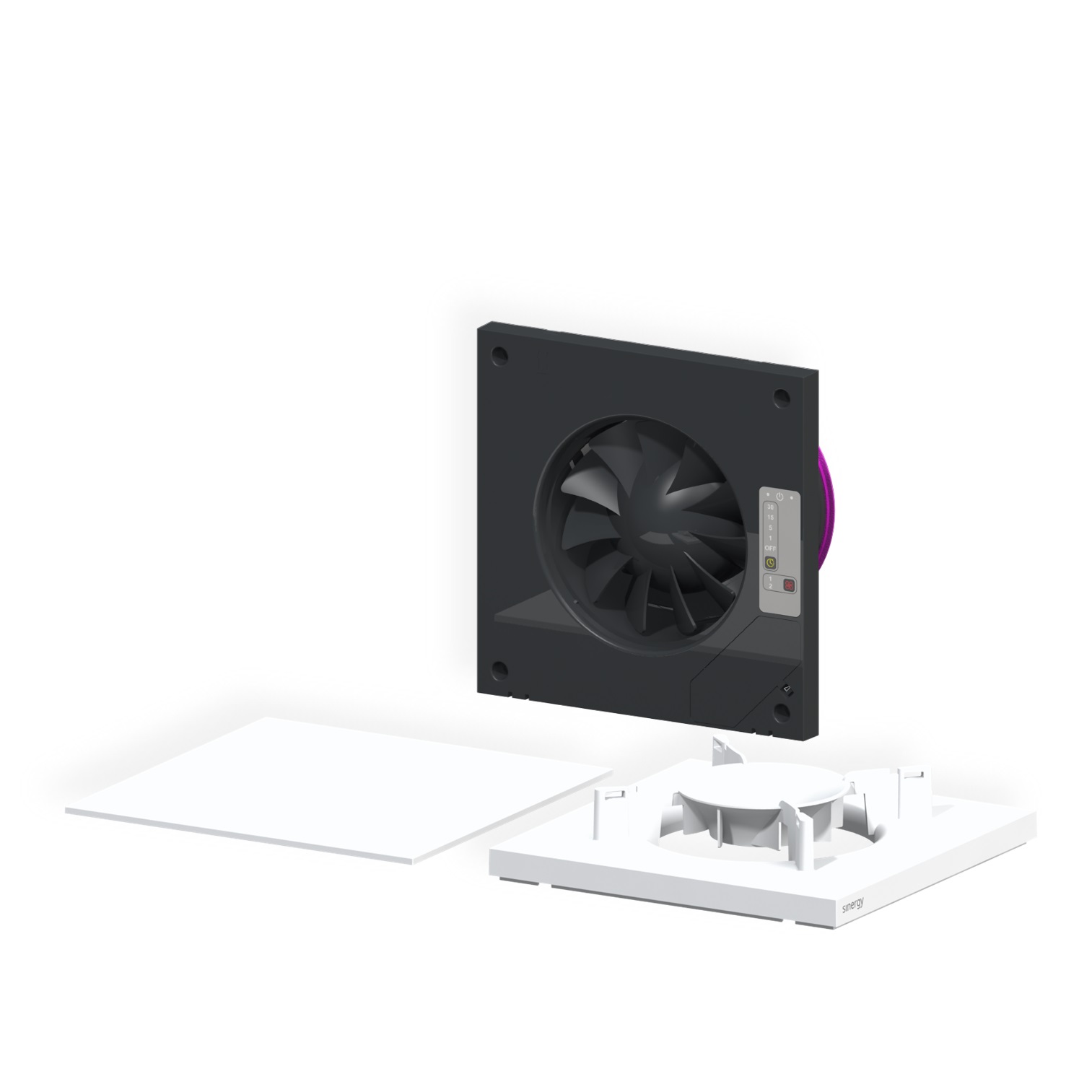

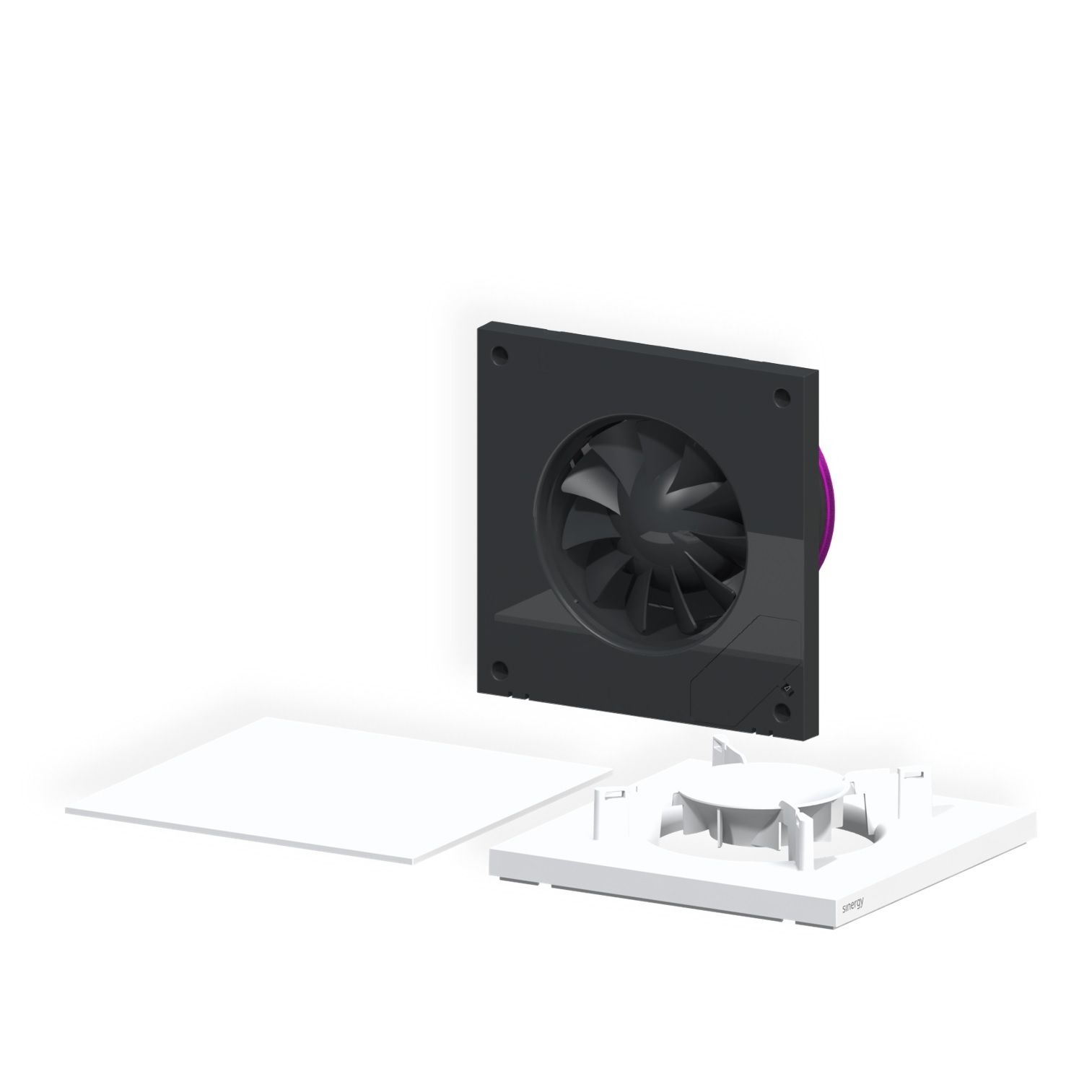

The specially designed flat front cover provides visual comfort in the space without drawing unnecessary attention to technical elements. Beneath it, an ergonomically arranged control panel is integrated with built-in sensors, LED indicators, and adjustment buttons. The cover design allows easy maintenance and cleaning — by simply rotating the front cover counterclockwise, it can be easily removed.

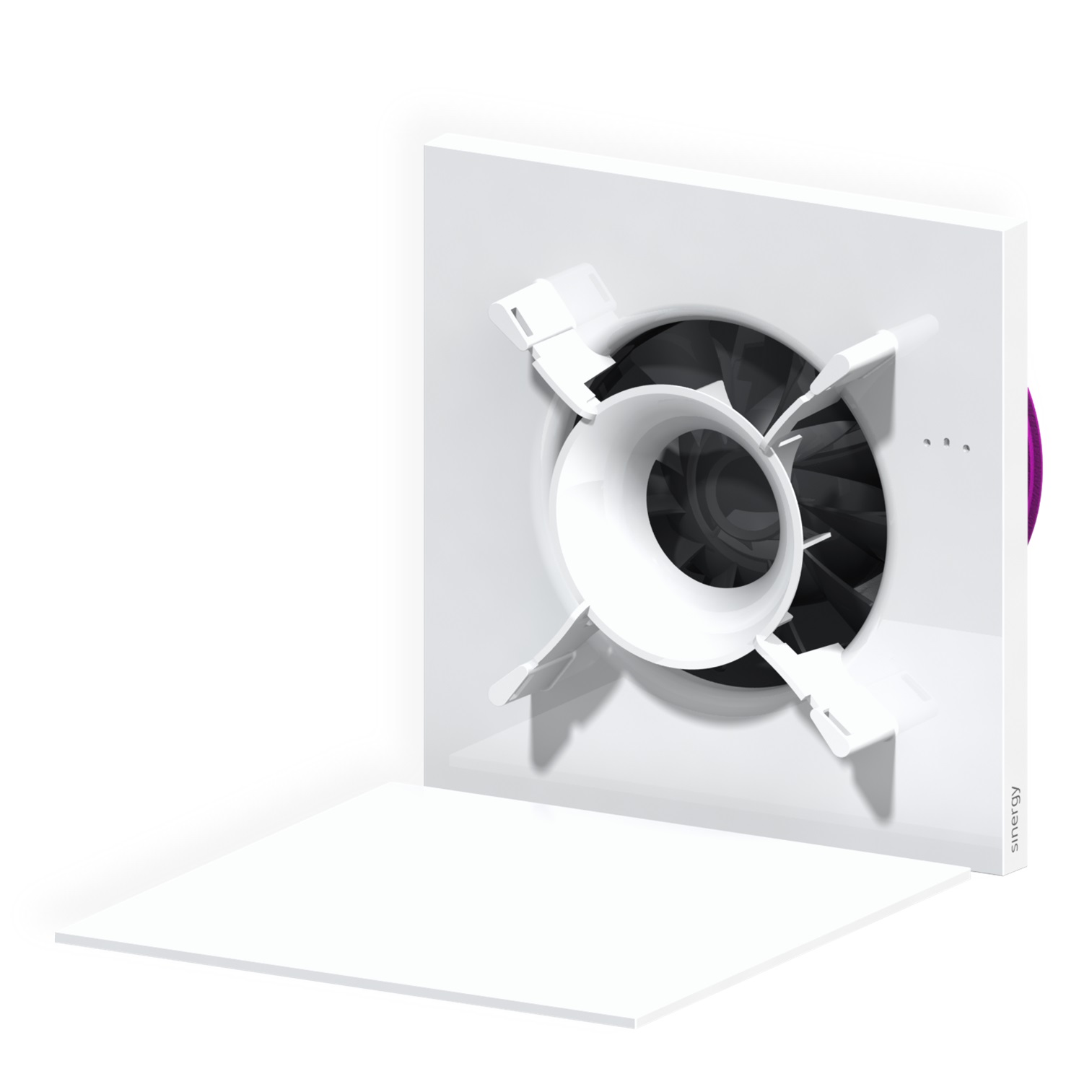

Particular attention has been paid to airtightness and energy efficiency. The device complies with EN1506 and EN12237 standards, and thanks to TPE elements, it achieves D-class airtightness, reducing air leakage and improving overall ventilation system efficiency. The integrated backdraft damper prevents cold air, dust, and unpleasant odors from re-entering the room.
For maximum convenience, all EUROPLAST SINERGY SET fans are equipped with two-speed motors, allowing users to choose the optimal balance between ventilation performance and quiet operation.
Depending on the model, fans may include humidity and VOC sensors as well as a timer. The device automatically monitors air quality and adjusts operation according to real needs, running only when necessary, helping maintain a healthy indoor climate and reduce electricity consumption.
Installation is simple and fast. The fan can be mounted both vertically and horizontally. Screwless connectors and convenient cable placement significantly simplify the installation process.
The manufacturer’s warranty is 60 months (5 years) from the date of purchase of the device.
Functions
Energy efficient
The device is characterized by low electricity consumption. One of the main advantages of energy-efficient products is reduced operating costs. Lower energy consumption helps decrease monthly utility bills, which becomes especially noticeable during long-term and regular use of the device.
VOC
The unit is equipped with a volatile organic compounds (VOC) sensor. The fan automatically turns on when the concentration of these substances rapidly increases in the room, helping to remove them more quickly and maintain comfortable conditions.
Ball bearing
The fan motor is equipped with a ball bearing, which ensures better fan operation and also longevity. Thanks to the ball bearing, the fan can also be used for ceiling mounting.
Timer
The device is equipped with a timer. After switching off the fan, the timer keeps it running for a specific time interval that is set up by a controller. The set operating time after switching off the fan is from 1 to 30 minutes.
Humidity sensor
The fan is equipped with a humidity level control that may be used to set the level of humidity from ~60%RH - ~90%RH and a delay control that may be used to set the delay from 1 to 30 min. The fan is turned on automatically when a certain humidity level is reached in the room or it may be turned on manually by a switch.
Silent
Product with reduced noise levels. This is achieved through modern technological solutions, including a well-thought-out design, optimized aerodynamics, reduced turbulence, vibration damping, and more. Acoustic comfort ensures a more pleasant indoor environment and does not distract from rest, work, or everyday activities.
| Description | Connection | Functions | |
|---|---|---|---|
SET100
|
silent electric fan EUROPLAST SINERGY, Ø100mm
|
Ø 100 mm |
|
SET100T
|
silent electric fan EUROPLAST SINERGY, Ø100mm, with a timer
|
Ø 100 mm |
|
SET100VHT
|
silent electric fan EUROPLAST SINERGY, Ø100mm, with air quality sensors
|
Ø 100 mm |
|
SET100HT
|
silent electric fan EUROPLAST SINERGY, Ø100mm, with humidity sensor and a timer
|
Ø 100 mm |
|
SET125
|
silent electric fan EUROPLAST SINERGY, Ø125mm
|
Ø 125 mm |
|
SET125T
|
silent electric fan EUROPLAST SINERGY, Ø125mm, with a timer
|
Ø 125 mm |
|
SET125VHT
|
silent electric fan EUROPLAST SINERGY, Ø125mm, with air quality sensors
|
Ø 125 mm |
|
SET125HT
|
silent electric fan EUROPLAST SINERGY, Ø125mm, with humidity sensor and a timer
|
Ø 125 mm |
|
SET150
|
silent electric fan EUROPLAST SINERGY, Ø150mm
|
Ø 150 mm |
|
SET150T
|
silent electric fan EUROPLAST SINERGY, Ø150mm, with a timer
|
Ø 150 mm |
|

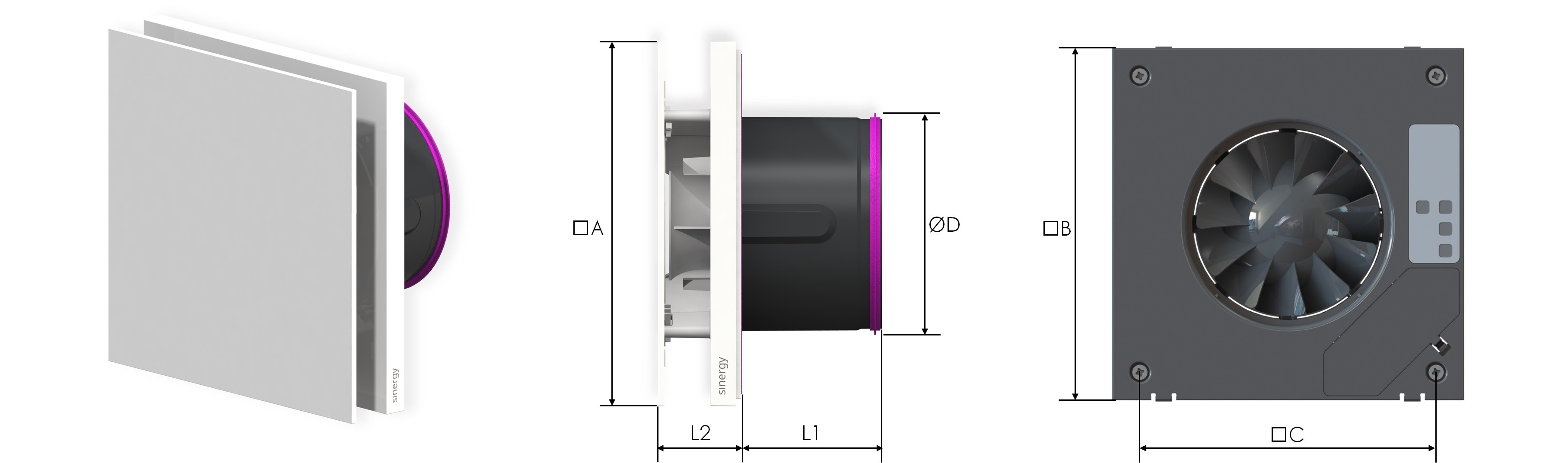

| Type | A [mm / in] |
B [mm / in] |
C [mm / in] |
ØD [mm / in] |
L1 [mm / in] |
L2 [mm / in] |
| SET100 | 182 / 7,17″ | 170 / 6,70″ | 143 / 5,63″ | 99 / 3,90″ | 80 / 3,15″ | 43 / 1,70″ |
| SET125 | 207 / 8,15″ | 195 / 7,68″ | 168 / 6,61″ | 124 / 4,88″ | 80 / 3,15″ | 47 / 1,85″ |
| SET150 | 232 / 9,14″ | 220 / 8,67″ | 193 / 7,60″ | 149 / 5,87″ | 122 / 4,81″ | 54 / 2,13″ |
| Model: | Two speeds | Control panel | Timer | Humidity sensor | Air quality sensor | Backdraft damper |
| SET100 / SET125 / SET150 | ● | ● | ||||
| SET100T / SET125T / SET150T | ● | ● | ● | ● | ||
| SET100HT / SET125HT / SET150HT | ● | ● | ● | ● | ● | |
| SET100VHT / SET125VHT / SET150VHT | ● | ● | ● | ● | ● | ● |

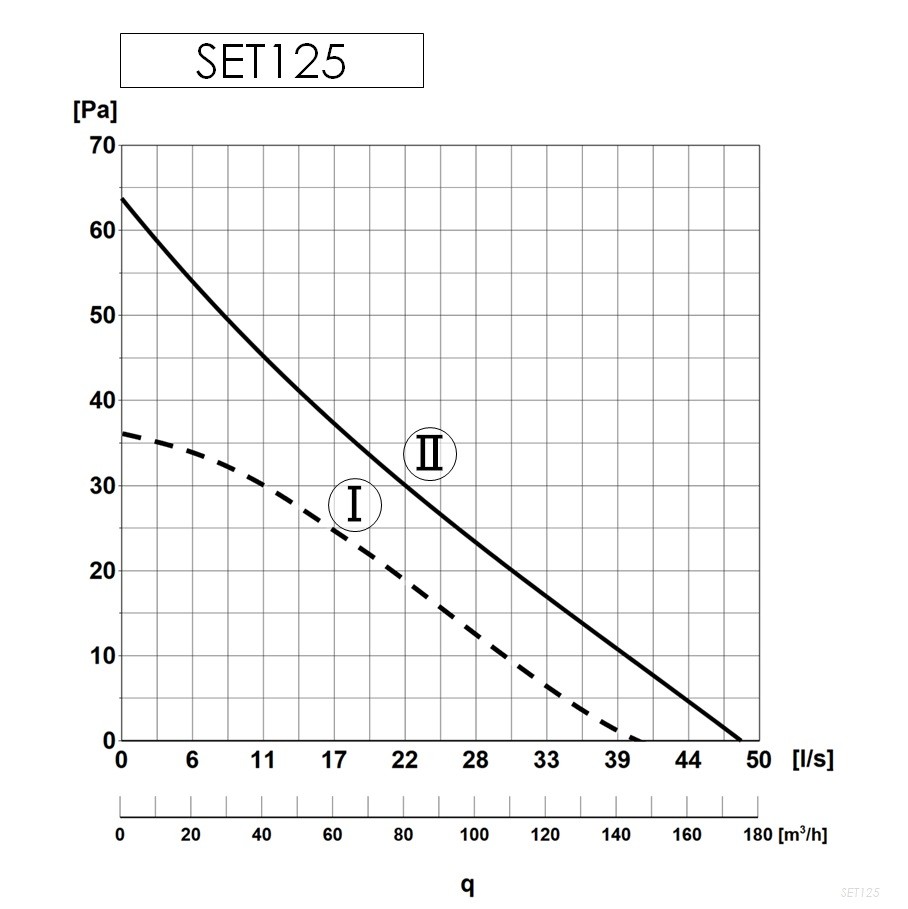

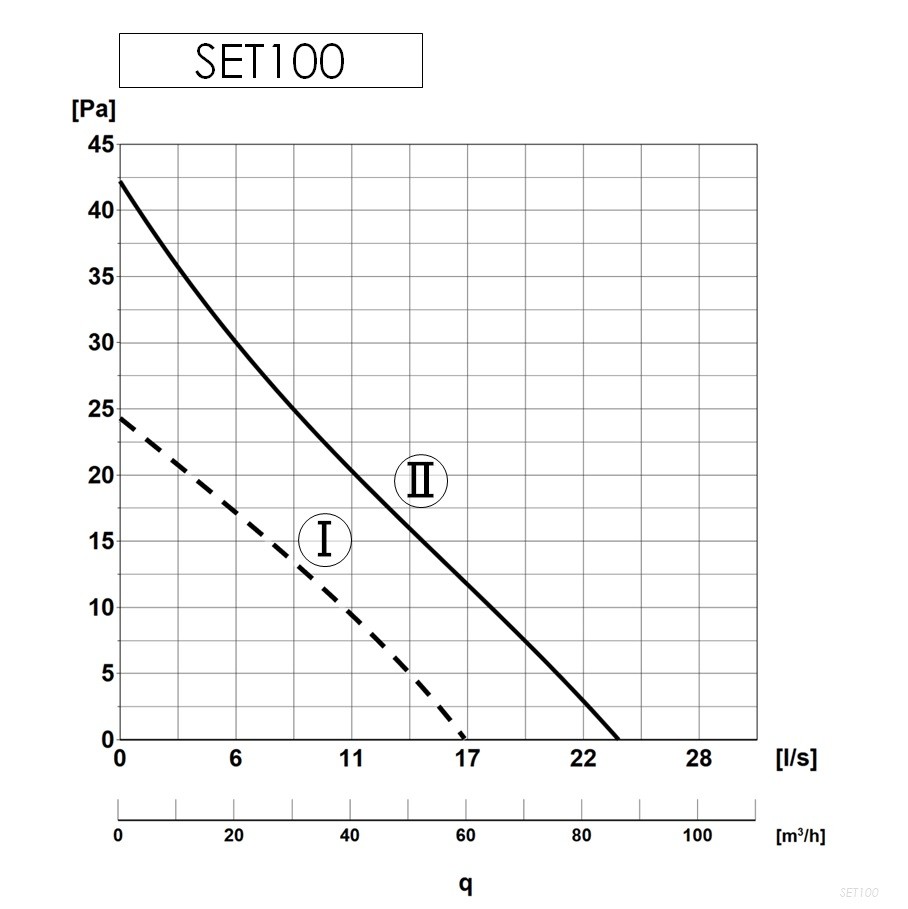

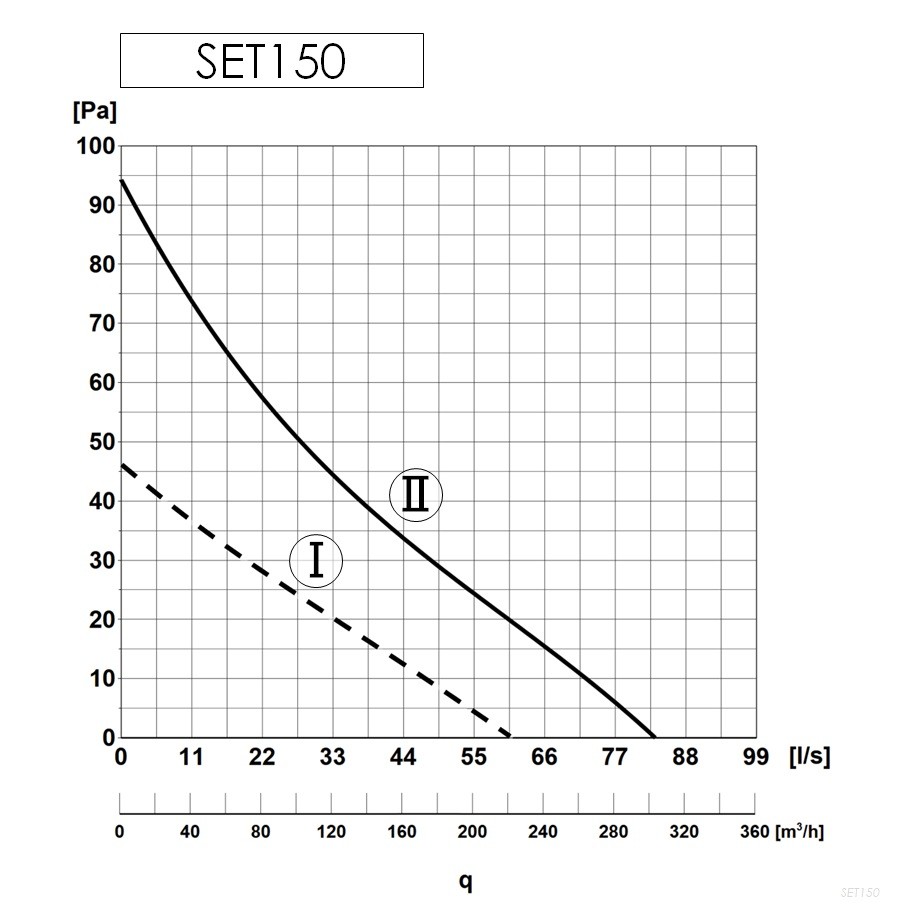

| Technical Parameters | SET100 | SET125 | SET150 | |||
| Supply voltage [V, Hz] | ~220-240V, 50-60Hz | |||||
| Speed | I | II | I | II | I | II |
| Power input [W] | 4 | 8 | 10 | 17 | 16 | 19 |
| Air flow rate (free blowing) [m3/h] | 60 | 85 | 145 | 175 | 220 | 300 |
| Static pressure [Pa] | 24 | 42 | 36 | 64 | 46 | 95 |
| Specific power input [W/(m3/h)] | 0,06 | 0,09 | 0,06 | 0,09 | 0,07 | 0,07 |
| Sound pressure level at 3 m distance [Lp A dB] | 22 | 27 | 28 | 35 | 28 | 38 |
| Protection against environmental influences | IP45 | |||||
| Bathroom zones | Zone 1 and 2 | |||||
| Ambient temperature [°C] | +5 ... +50 | |||||
| Weight [kg] | 0,7 | 0,9 | 1,6 | |||
Ⅰ - First Speed
Ⅱ - Second Speed

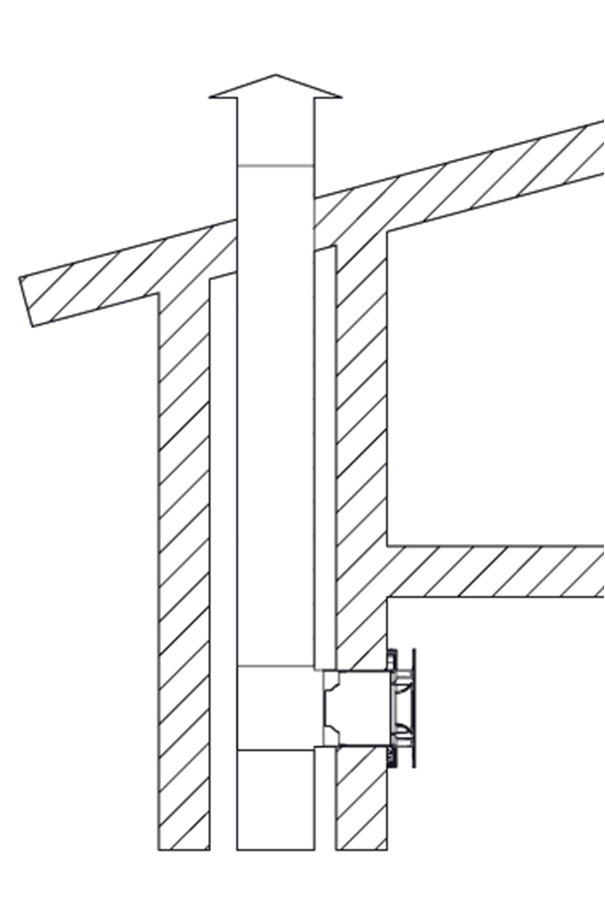

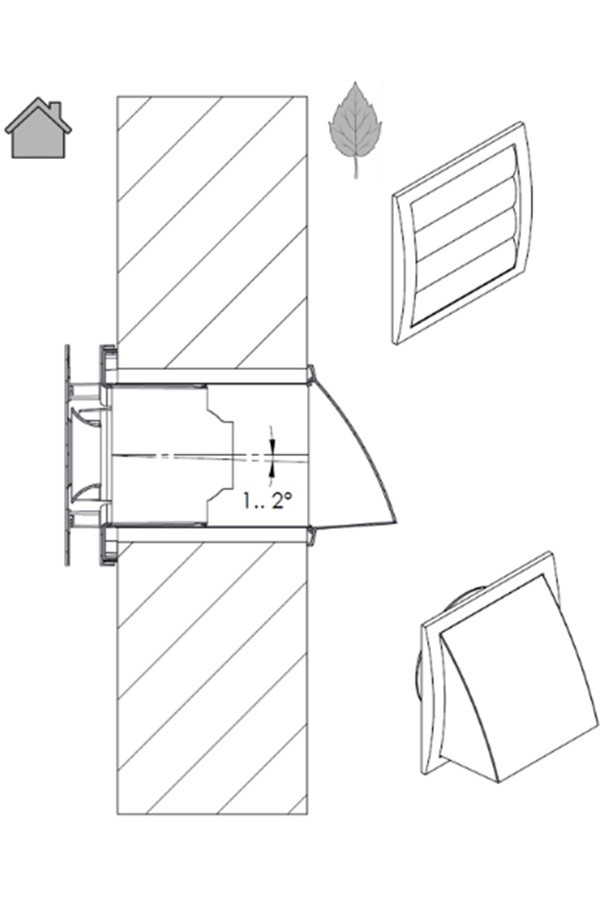

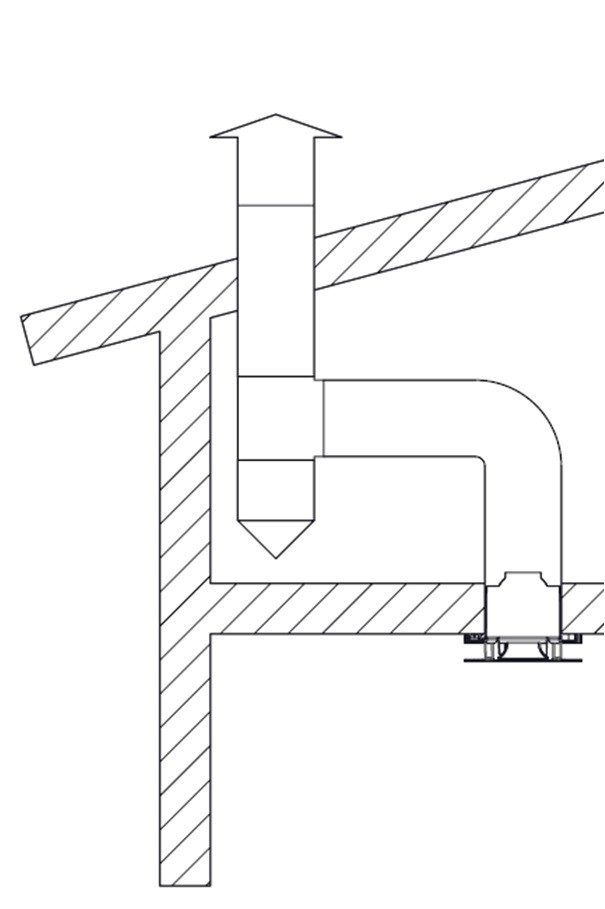

Installation Methods
