plastic universal diffusers A6 LDP
Construction:
- Made of plastic
- Full plastic body, disc and screw
- Adjustable airflow
- Screw fixing to the wall or ceiling
Installation:
- Compatible with all types of round air ducts
Colors: White, black
Plastic universal diffusers LDP are suitable for exhaust or supply ventilation, or they can be used in natural ventilation openings. Diffusers can be installed in ceilings, walls, or connected to ventilation systems. Fully made of plastic, without metal components.
Functions
Adjustable
The product is equipped with a manual regulator that allows you to regulate the air flow volume.
| Description | Connection | Functions | |
|---|---|---|---|
LDP100M
|

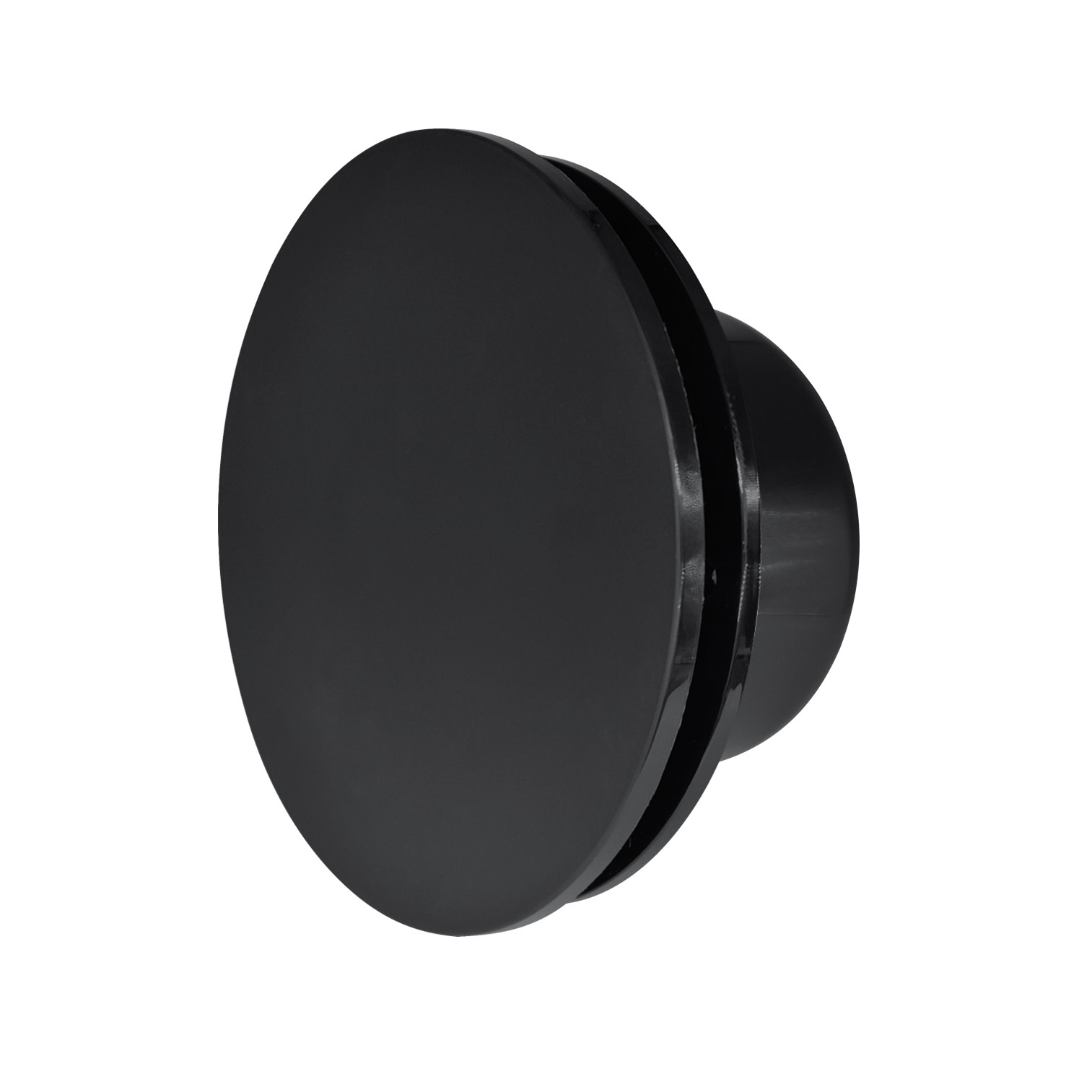

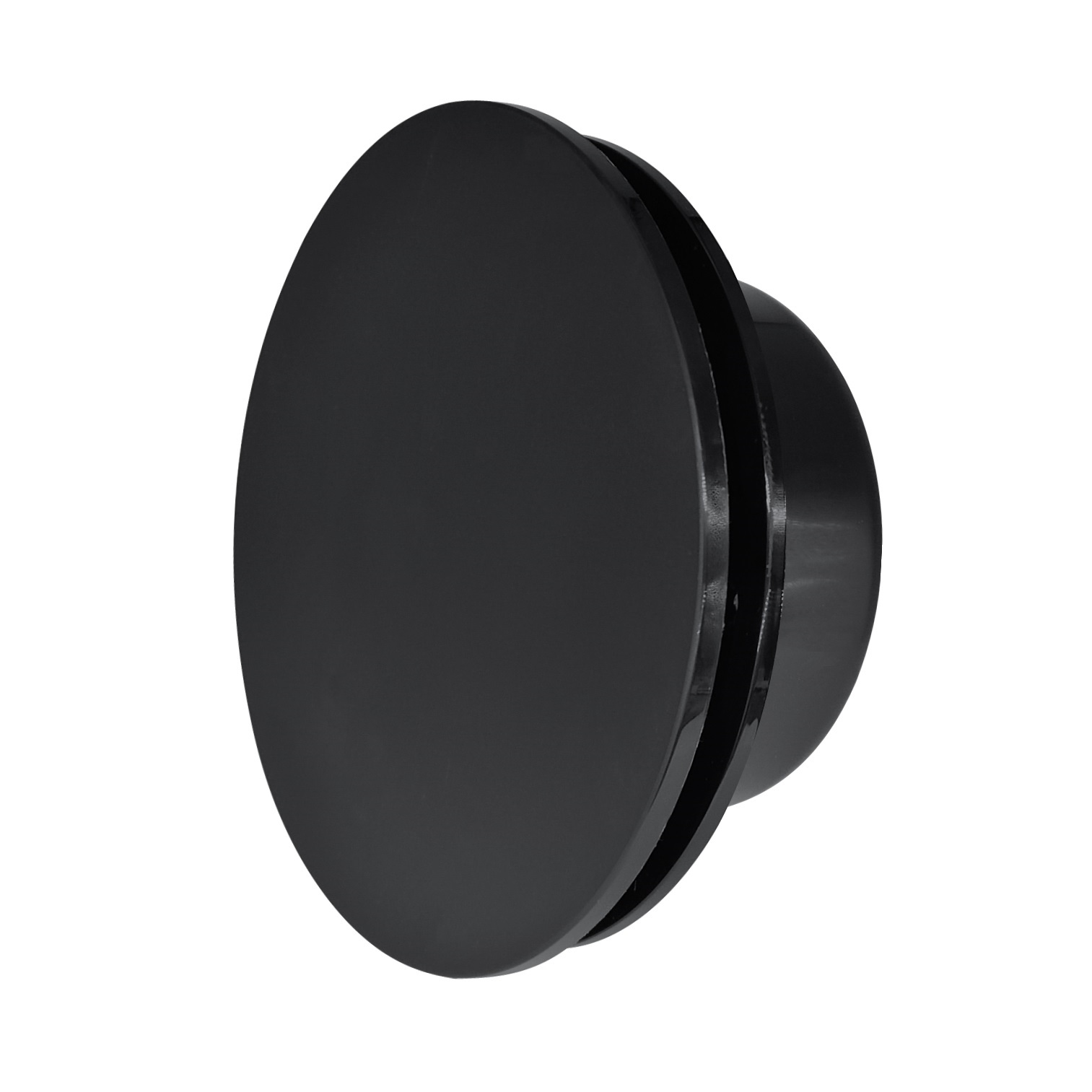

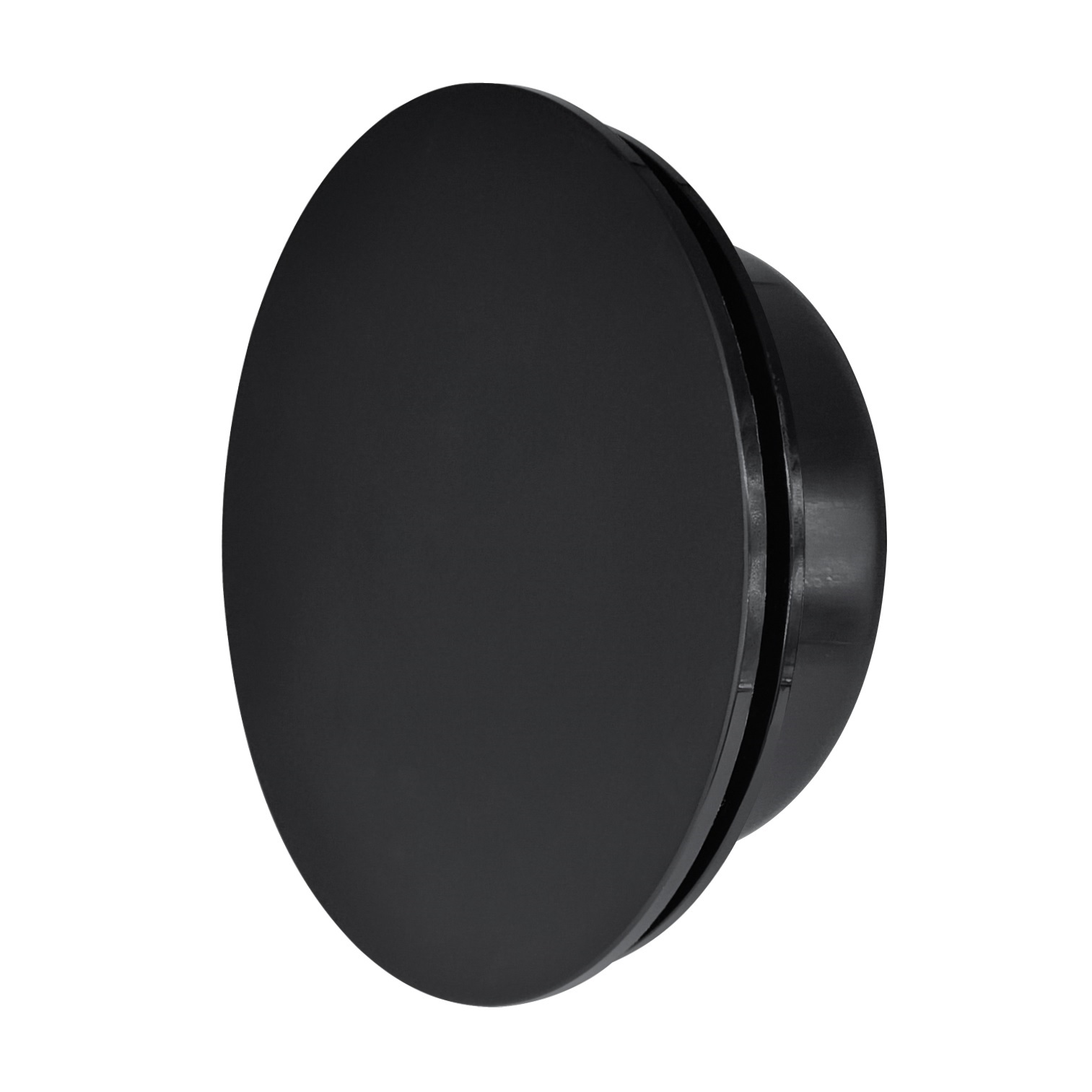

diffuser plastic A6, Ø100mm, all-purpose, black
|
Ø 100 mm |
|
LDP100
|

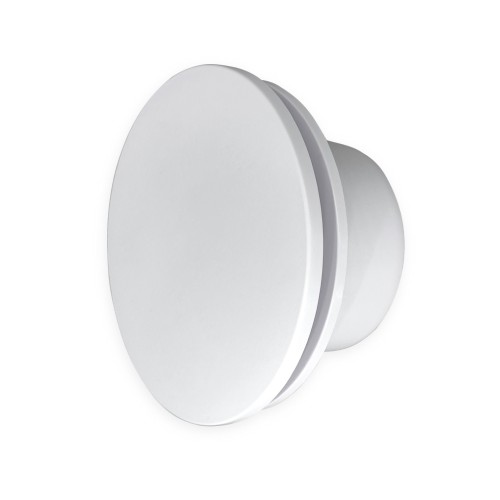

diffuser plastic A6, Ø100mm, all-purpose, white
|
Ø 100 mm |
|
LDP125M
|
diffuser plastic A6, Ø125mm, all-purpose, black
|
Ø 125 mm |
|
LDP125
|
diffuser plastic A6, Ø125mm, all-purpose, white
|
Ø 125 mm |
|
LDP150M
|
diffuser plastic A6, Ø150mm, all-purpose, black
|
Ø 150 mm |
|
LDP150
|
diffuser plastic A6, Ø150mm, all-purpose, white
|
Ø 150 mm |
|
| Type | ØD [mm] |
ØD1 [mm] |
ØD2 [mm] |
H [mm] |
H1 [mm] |
H2 [mm] |
m [kg] |
| LDP100 | 98 | 145 | 153 | 53 | 7 | 6 | 0,10 |
| LDP125 | 123 | 170 | 178 | 53 | 7 | 6 | 0,13 |
| LDP150 | 148 | 195 | 203 | 53 | 7 | 6 | 0,16 |
| Modifications |
| LDPxxx — white colour |
| LDPxxxM — black colour |
