insulation material IMF

Construction:

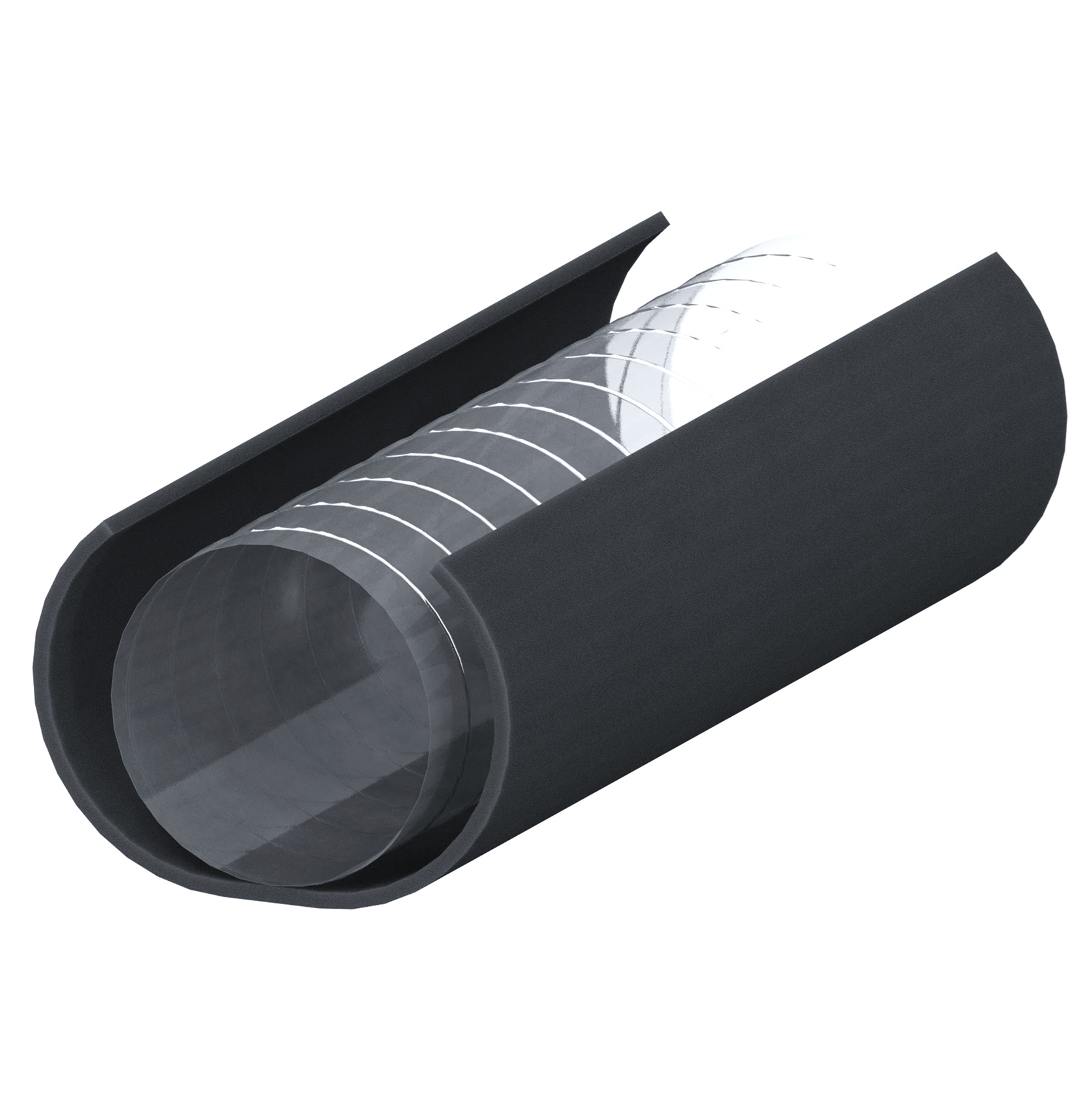

Pre-fabricated insulation material components for circular air duct systems
When placing the insulation component on the air duct, only one seam needs to be glued
Insulation made of flexible elastomeric foam (FEF)
Insulation complies with Class B fire safety standards

Installation, advantages:

Fast and convenient installation - lower labor costs
No material leftover waste - lower material costs
No special cutting tools required - lower tool and sharpening costs
No special training or insulation experience required - lower labor costs
No dedicated workplace required for insulation cutting
Technically better result - more precise shape - better coverage and tightness
Visually and aesthetically better result - no inaccurate parts, damage, etc.
Only one seam needs to be glued

Insulation thickness [mm]: 19
Sizes [mm]: Ø100; Ø125; Ø160; Ø200
Color: Black
Operating temperature: -40°C ... +85°C

View products Request Price

EUROPLAST insulation for circular air duct systems is designed for ventilation, air conditioning, and heat recovery applications with additional energy efficiency requirements. It provides excellent sound and thermal insulation and protects against condensation formation. Insulation material complies with Class B fire safety standards. Pre-fabricated insulation components significantly reduce installation time and resource consumption on site while ensuring insulation quality.

	Description	Length	Connection	Thickness
IMF19-SD100-1	insulation material for air duct, Ø100mm-1m, thickness 19mm	1 m	100 mm	19 mm
IMF19-SD125-1	insulation material for air duct, Ø125mm-1m, thickness 19mm	1 m	125 mm	19 mm
IMF19-SD160-1	insulation material for air duct, Ø160mm-1m, thickness 19mm	1 m	160 mm	19 mm
IMF19-SD200-1	insulation material for air duct, Ø200mm-1m, thickness 19mm	1 m	200 mm	19 mm

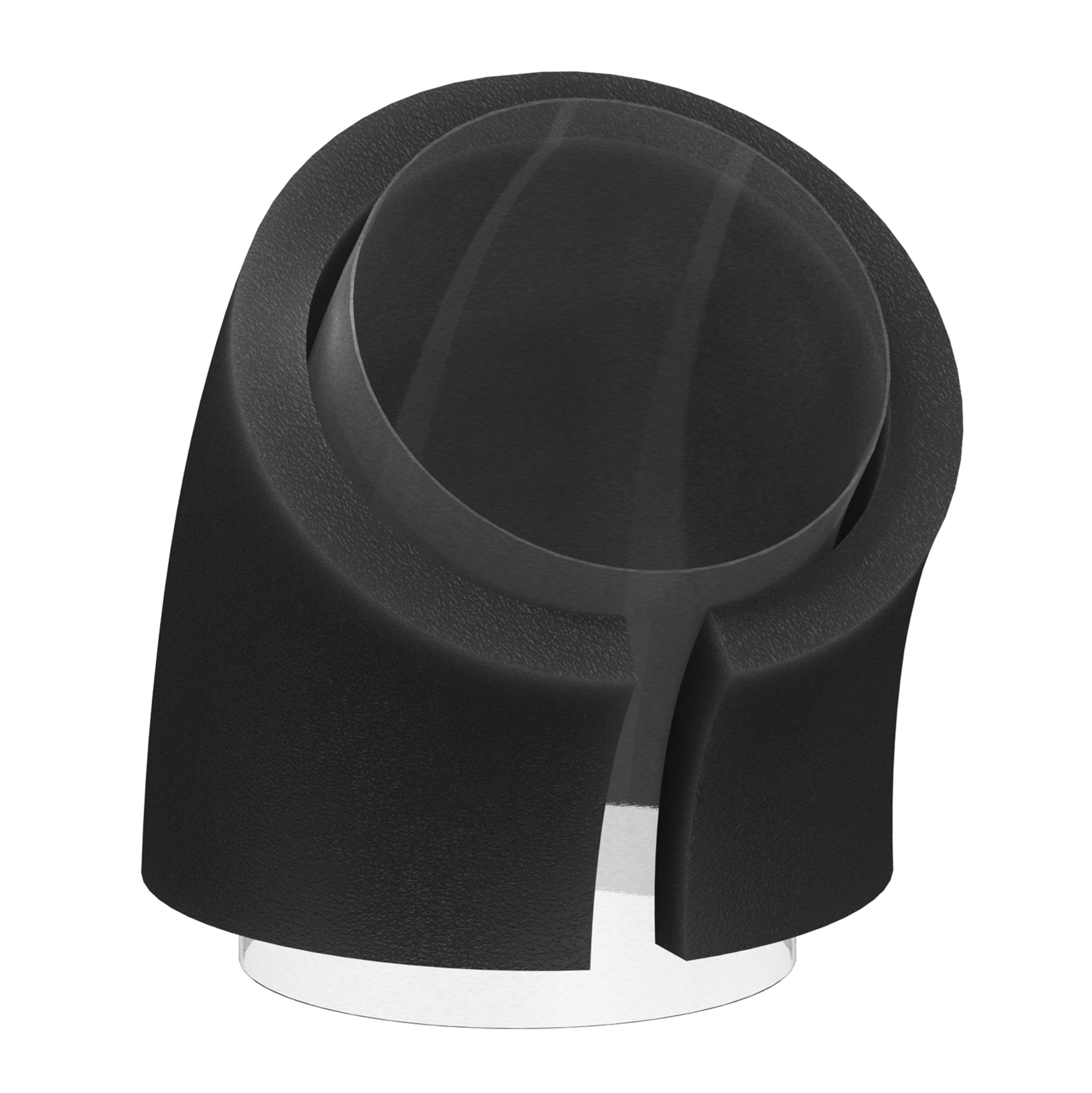

IMF19-BFS45-100	insulation material for elbow 45°-Ø100mm pressed, thickness 19mm		100 mm	19 mm
IMF19-BFS45-125	insulation material for elbow 45°-Ø125mm pressed, thickness 19mm		125 mm	19 mm
IMF19-BFS45-160	insulation material for elbow 45°-Ø160mm, thickness 19mm		160 mm	19 mm
IMF19-BFS45-200	insulation material for elbow 45°-Ø200mm, thickness 19mm		200 mm	19 mm
IMF19-BFS90-100	insulation material for elbow 90°-Ø100mm pressed, thickness 19mm		100 mm	19 mm
IMF19-BFS90-125	insulation material for elbow 90°-Ø125mm pressed, thickness 19mm		125 mm	19 mm

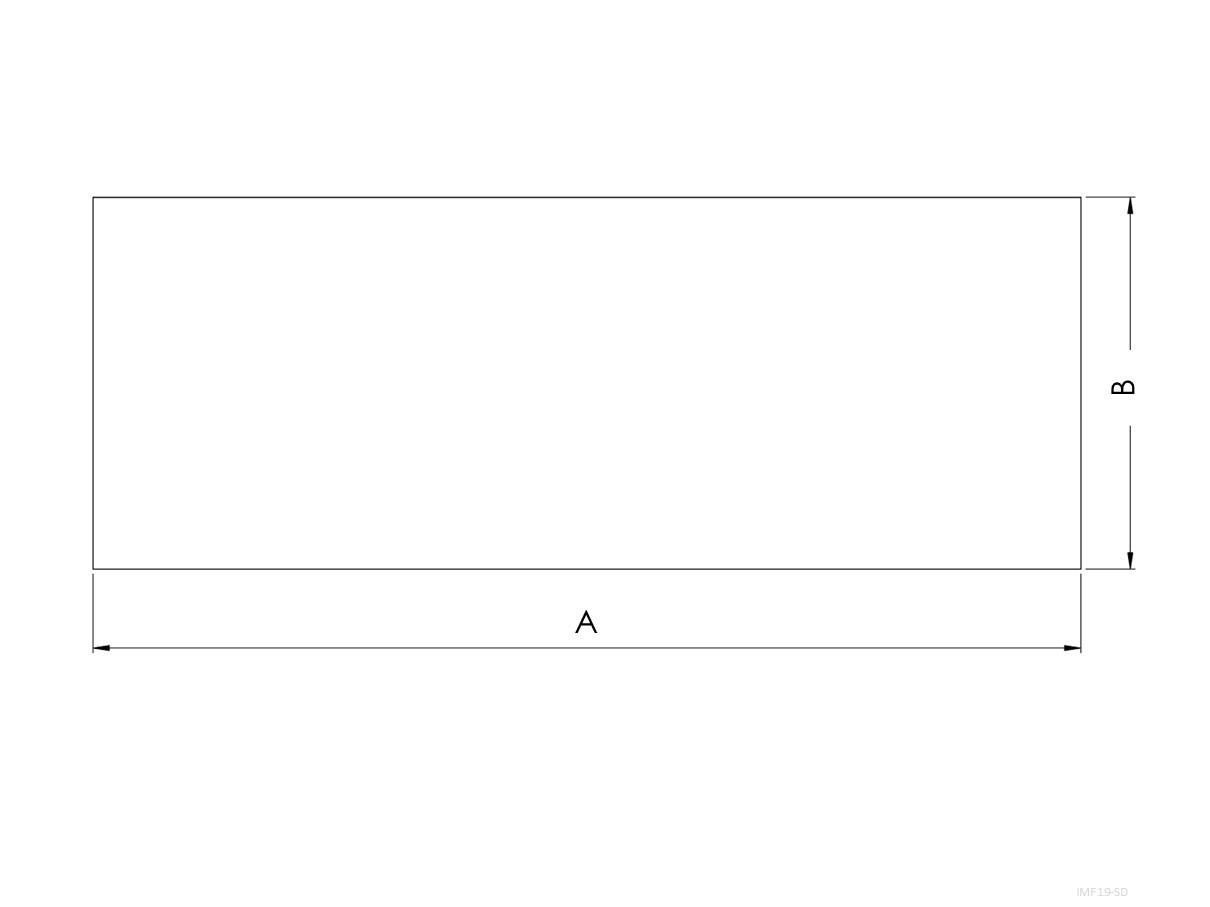

Type	ØD_nom [mm]	T, Thickness [mm]	A [mm]	B [mm]	Related products
IMF19-SD100-1	100	19	1000	377	SD100, SDM100, A100
IMF19-SD125-1	125	19	1000	455	SD125, SDM125, A125
IMF19-SD160-1	160	19	1000	565	SD160, SDM160
IMF19-SD200-1	200	19	1000	691	SD200, SDM200

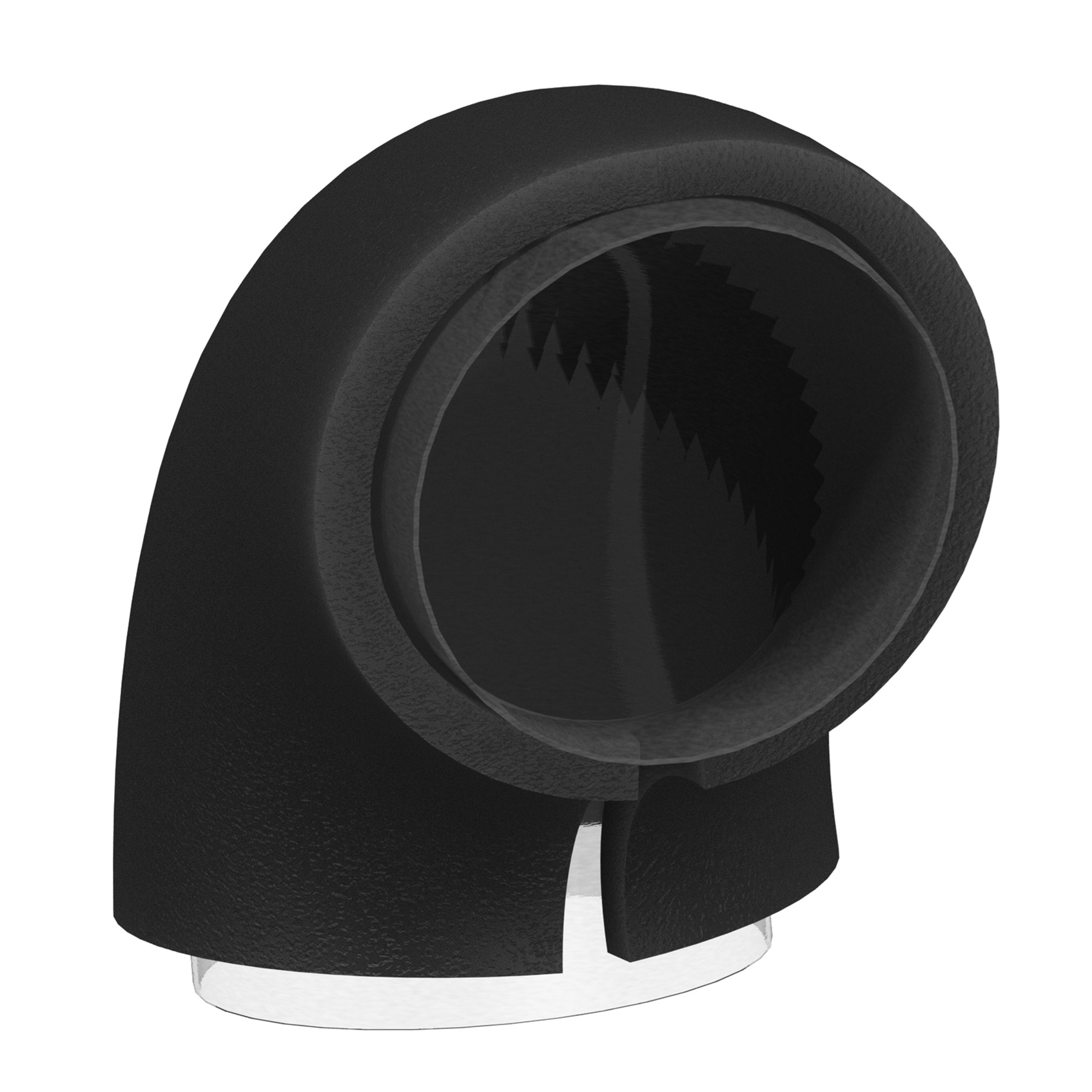

Type	ØD_nom [mm]	T, Thickness [mm]	A [mm]	B [mm]	Related products
IMF19-BFS90-100*	100	19	352	250	BFS90-100, BF90-100
IMF19-BFS90-125*	125	19	425	290	BFS90-125, BF90-125
IMF19-BFS90-160	160	19	535	370	BFS90-160, BF90-160
IMF19-BFS90-200	200	19	655	447	BFS90-200, BF90-200

*Pressed

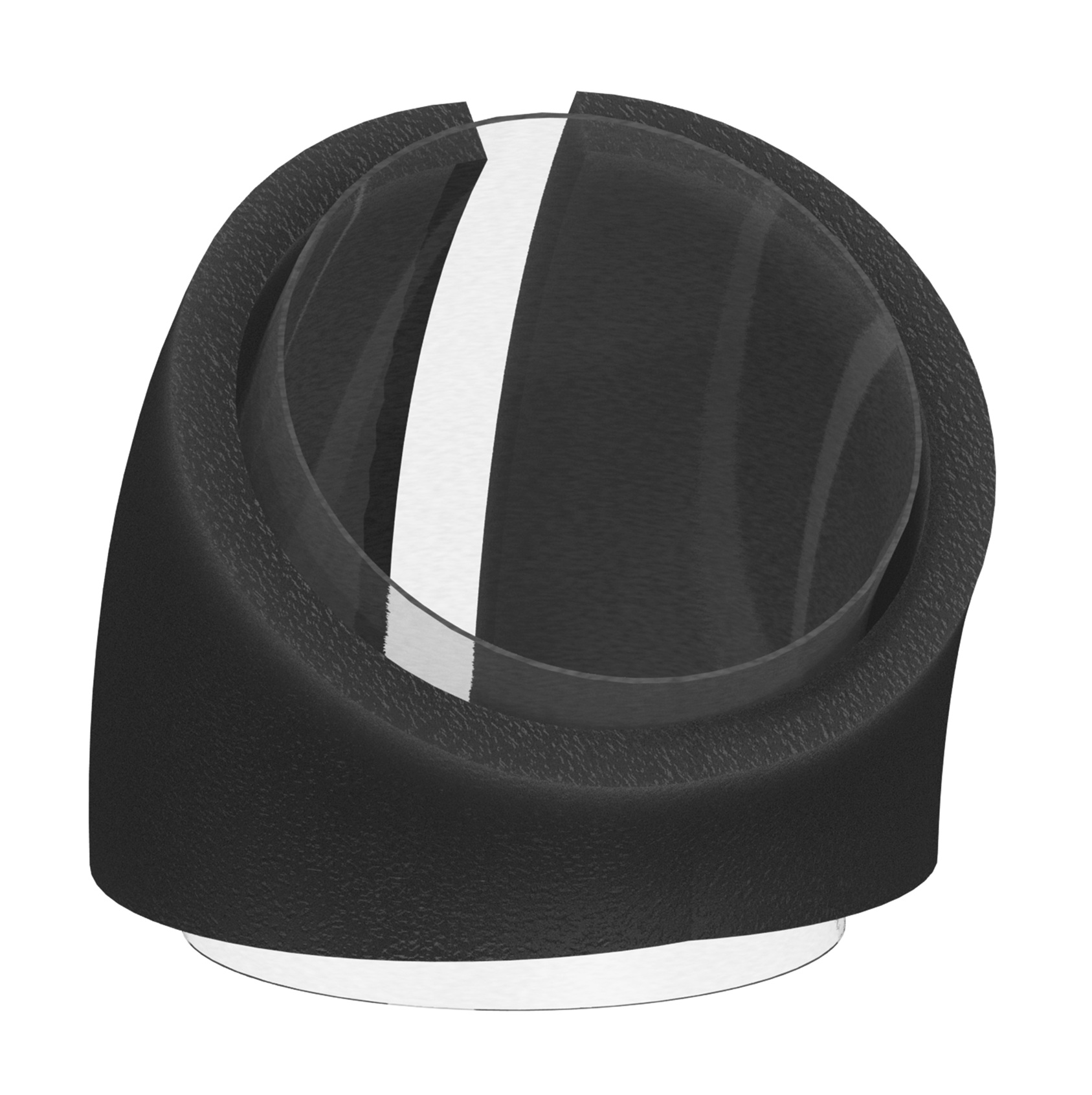

Type	ØD_nom [mm]	T, Thickness [mm]	A [mm]	B [mm]	Related products
IMF19-BFS45-100*	100	19	365	150	BFS45-100, BF45-100
IMF19-BFS45-125*	125	19	440	178	BFS45-125, BF45-125
IMF19-BFS45-160	160	19	540	205	BFS45-160, BF45-160
IMF19-BFS45-200	200	19	665	250	BFS45-200, BF45-200

*Pressed

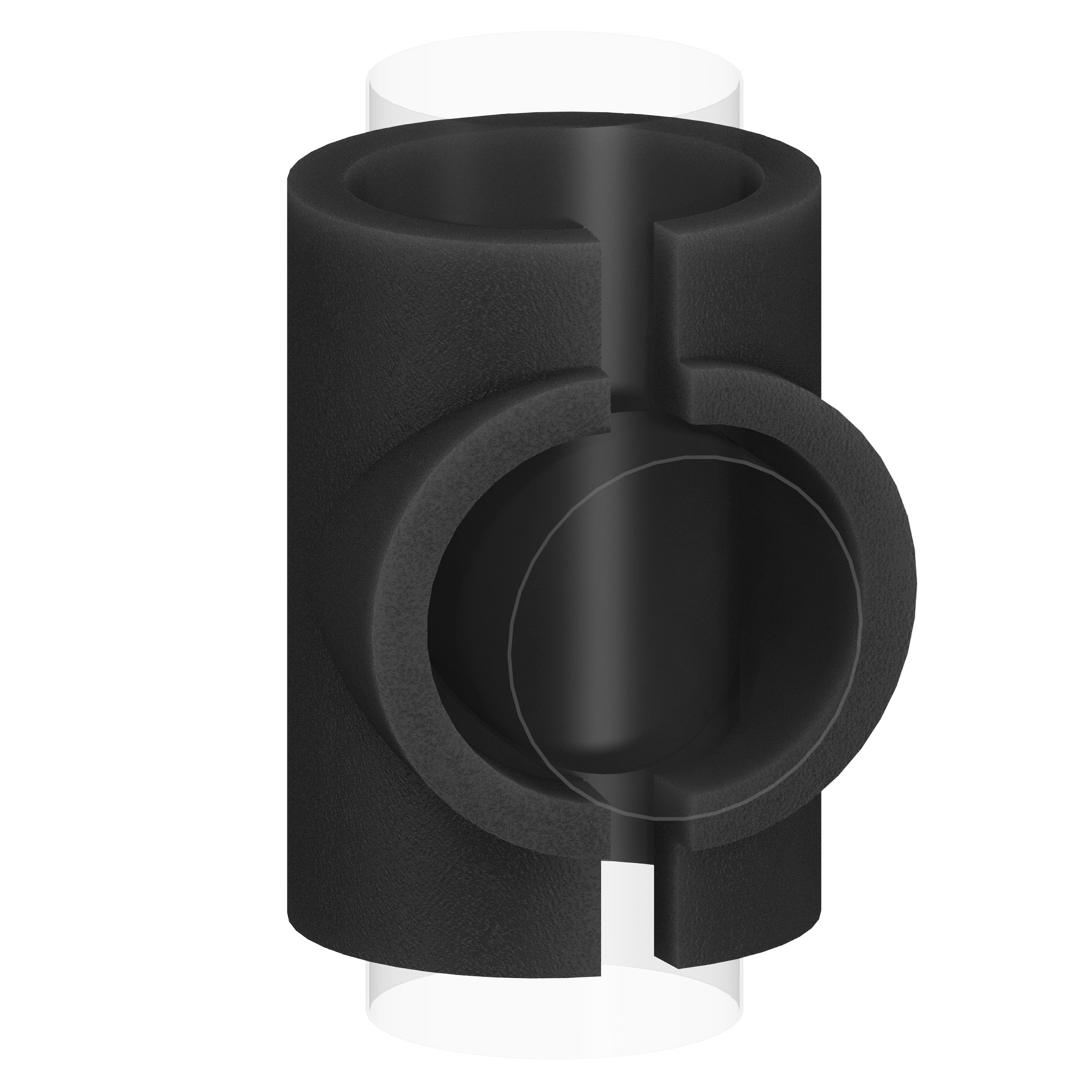

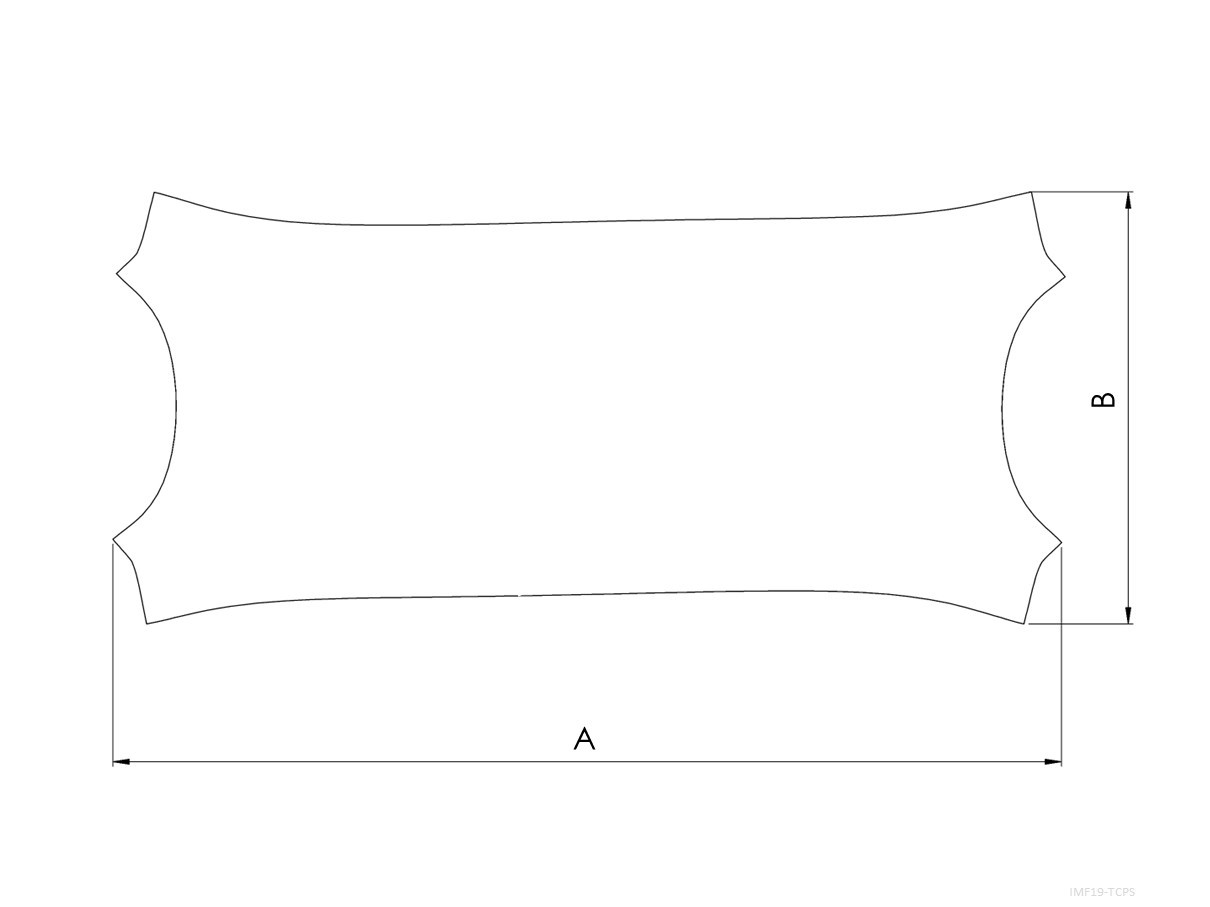

Type	ØD_nom [mm]	T, Thickness [mm]	A [mm]	B [mm]	Related products
IMF19-TCPS100-100	100	19	388	234	TCPS100-100, TCP100-100
IMF19-TCPS125-100	125	19	474	234	TCPS125-100, TCP125-100 Papildus piegriežot: TCPS125-125, TCP125-125
IMF19-TCPS160-100	160	19	571	227	TCPS160-100, TCP160-100 Papildus piegriežot: TCPS160-125, TCP160-125, TCPS160-160, TCP160-160
IMF19-TCPS200-125	200	19	708	271	TCPS200-125 Papildus piegriežot: TCP200-160, TCP200-160, TCPS200-200, TCP200-200

Essential characteristics	Performance characteristics	Testing standard
Thermal conductivity coefficient (for all thicknesses)	-10°C - 0,034 W/(mK) 0°C - 0,036 W/(mK) 25°C - 0,037 W/(mK) 40°C - 0,041 W/(mK)	EN 12667
Reaction to fire	B-s3, d0	EN 13501-1
Operating temperature	-40°C ... +85°C
