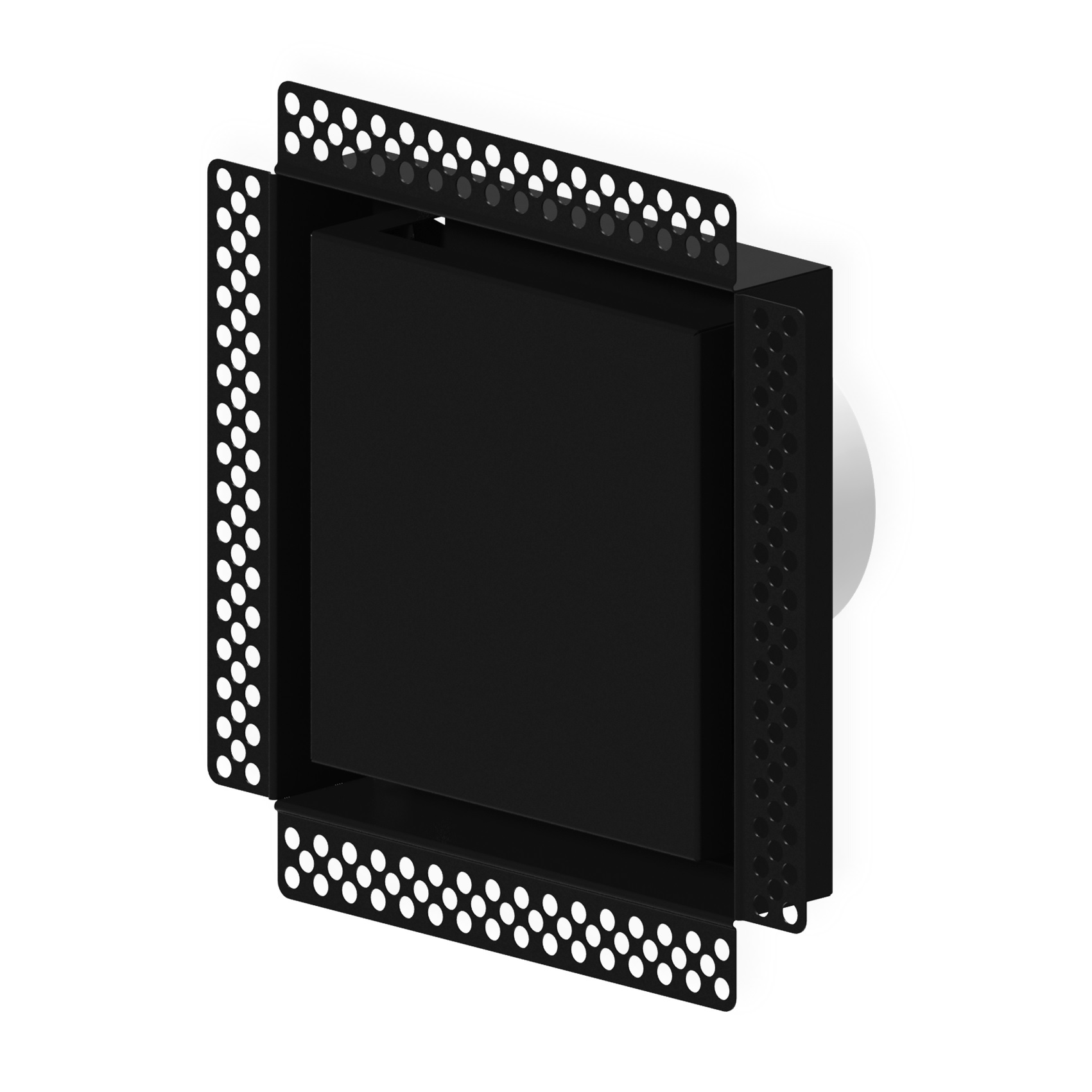

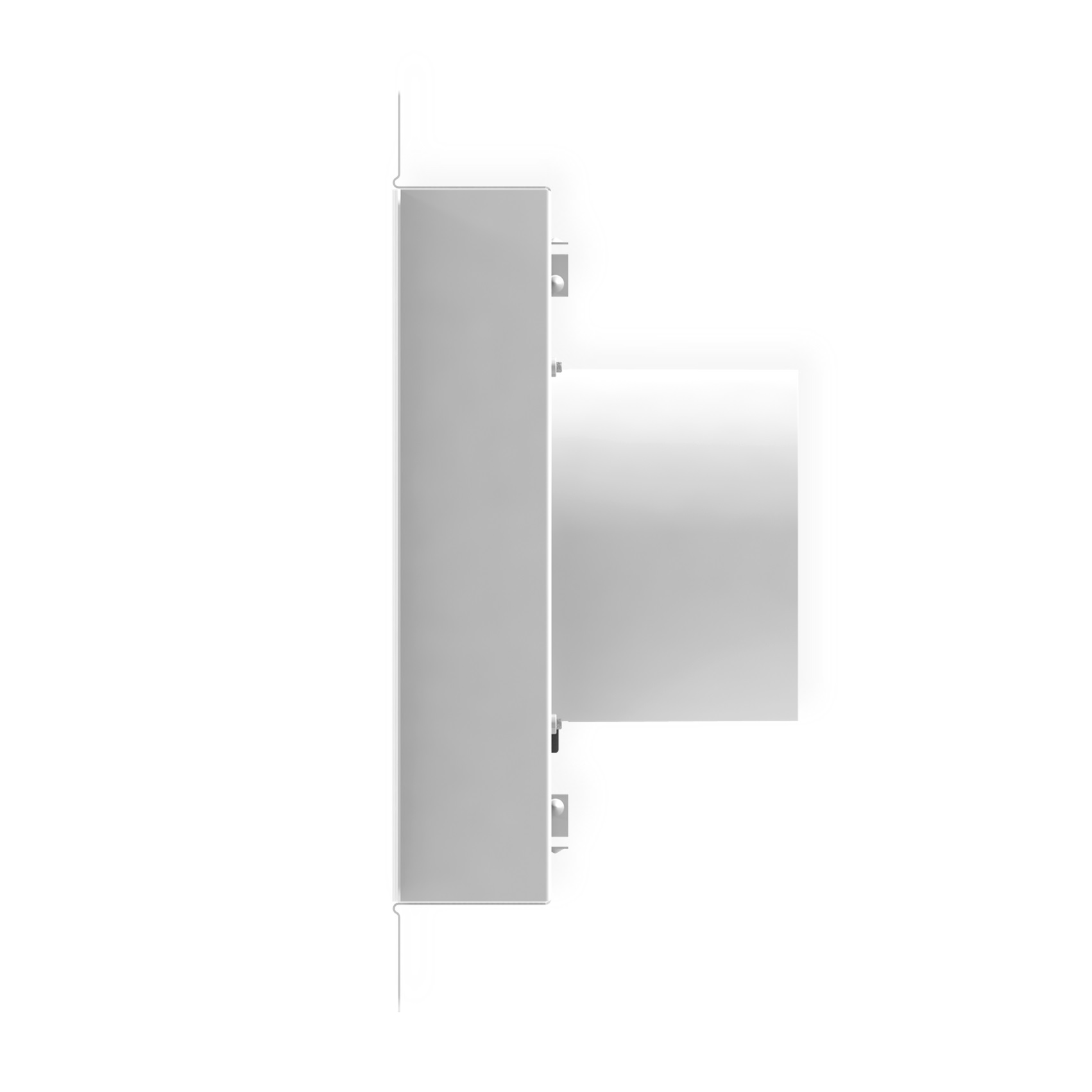

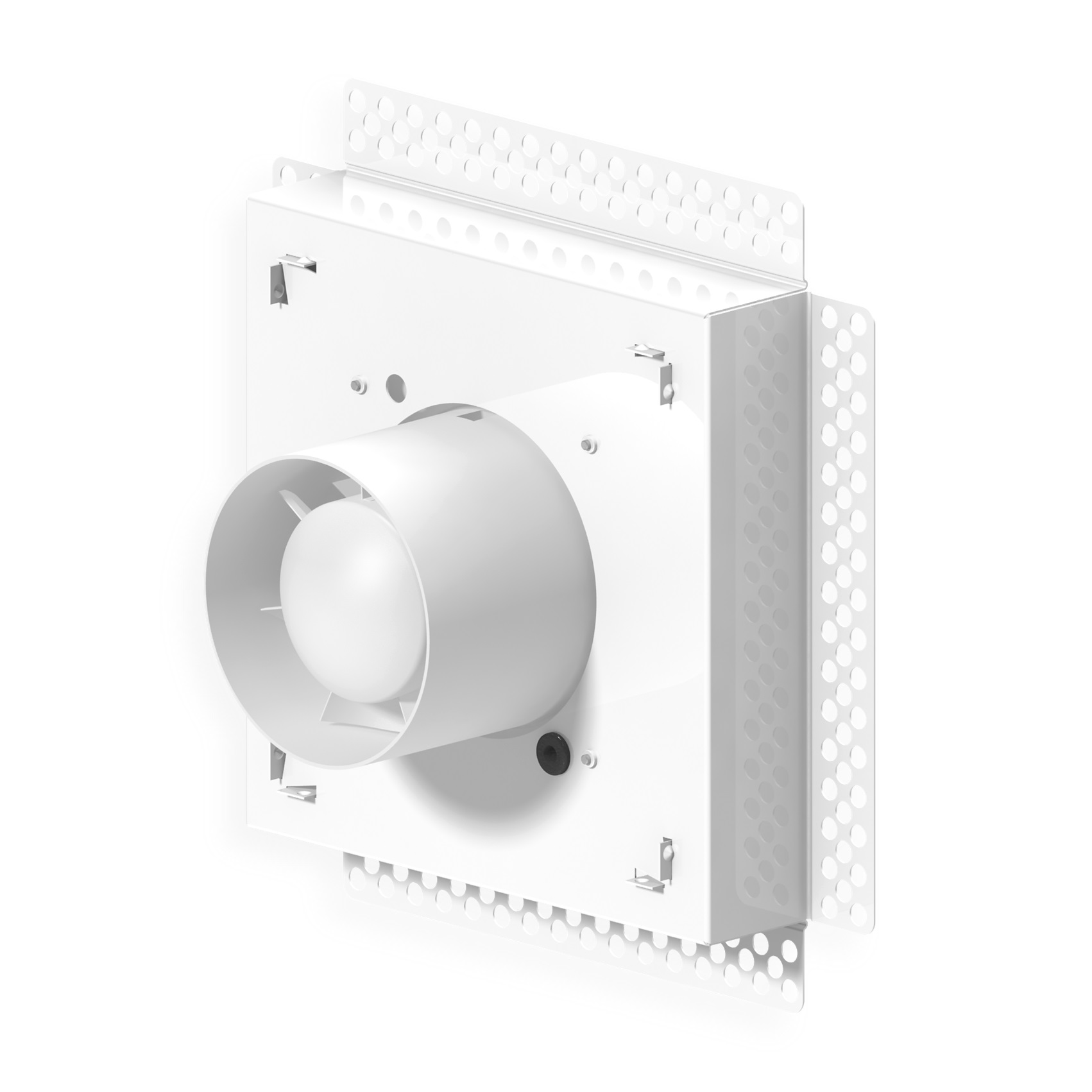

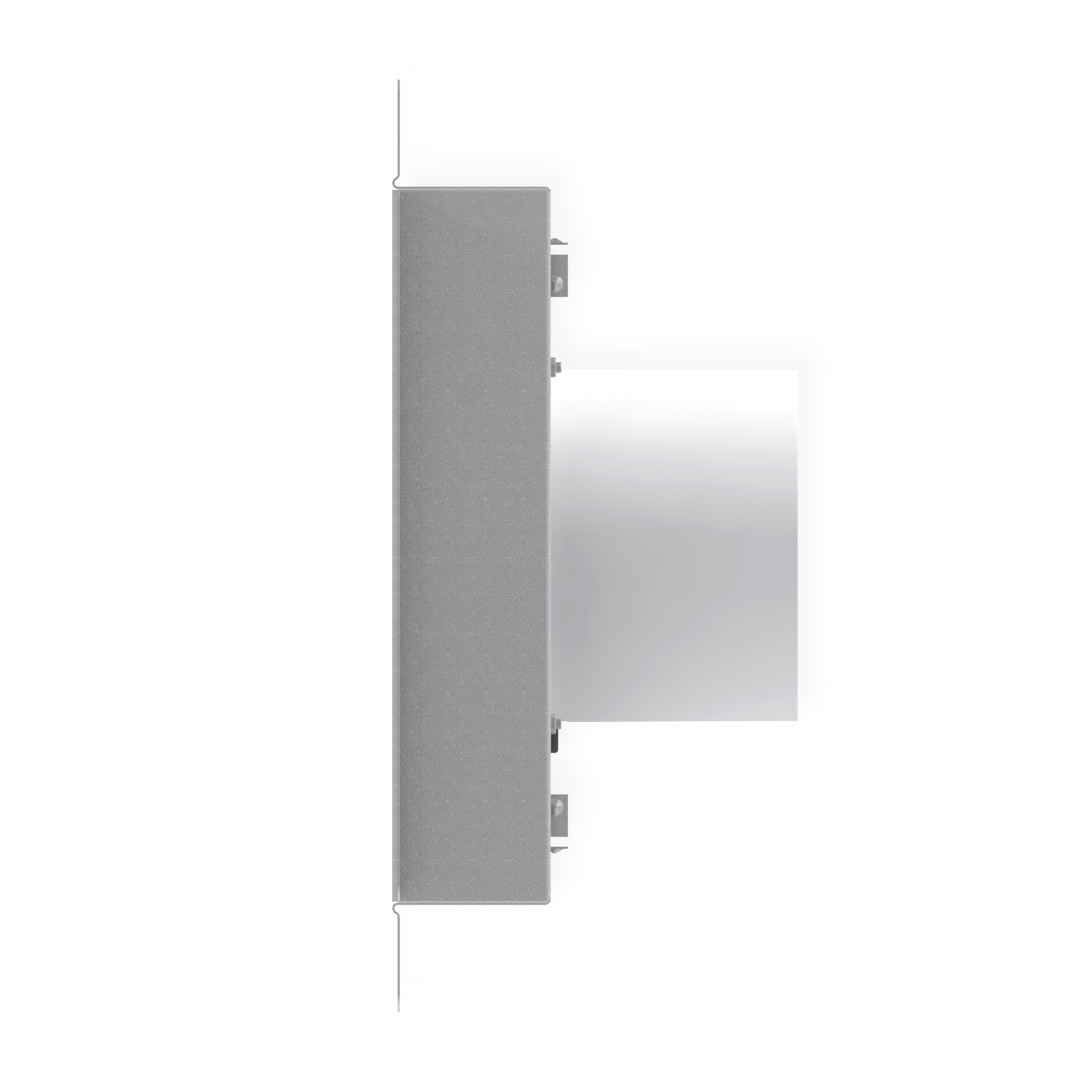

electric fans, flush-mounted, series ESVM

Construction:

Fan made of plastic
Can be installed in all types of round air ducts

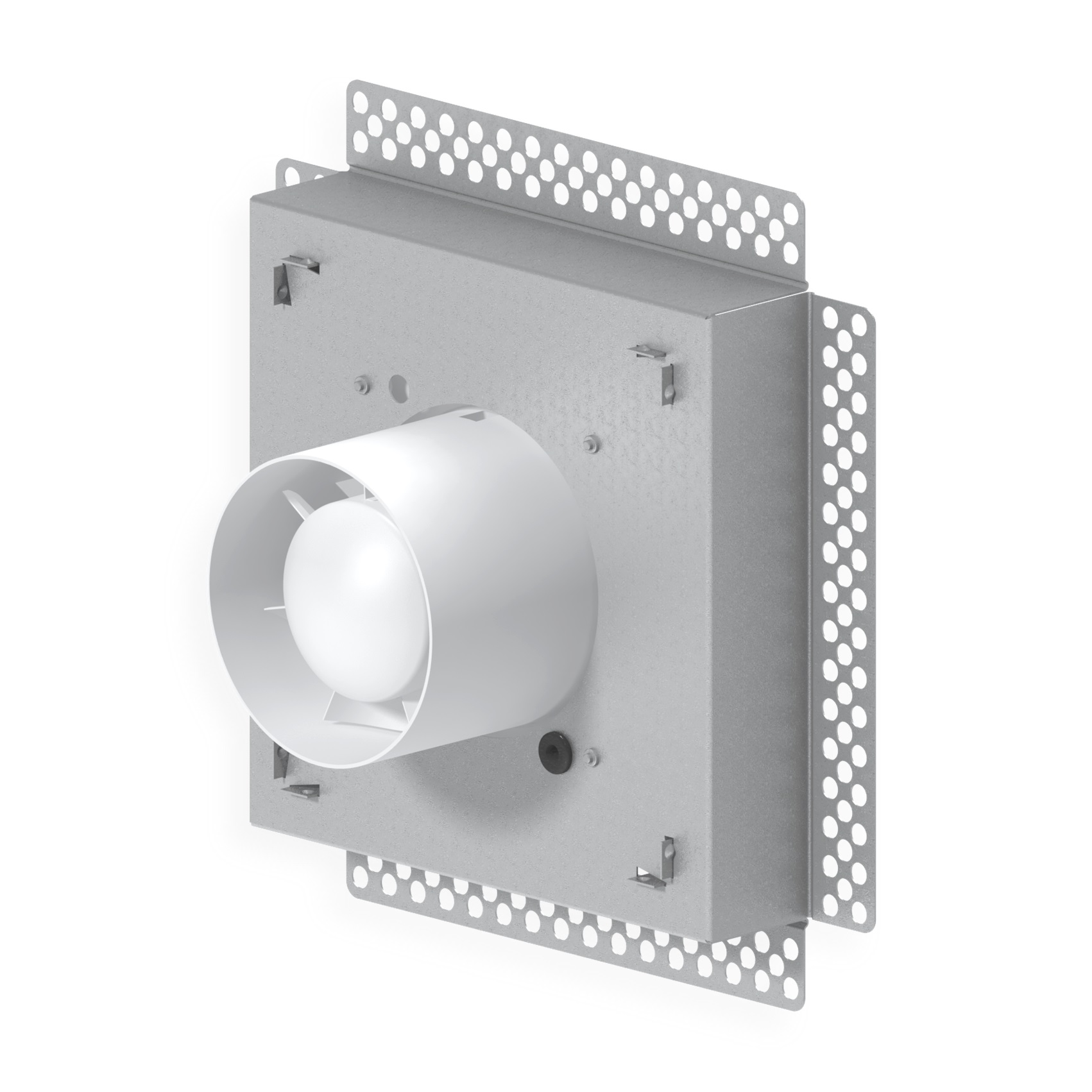

Metal housing is made of galvanized steel or other metals
Perforated metal frame
Raised edge profile - for perfect application of plaster or joint compounds

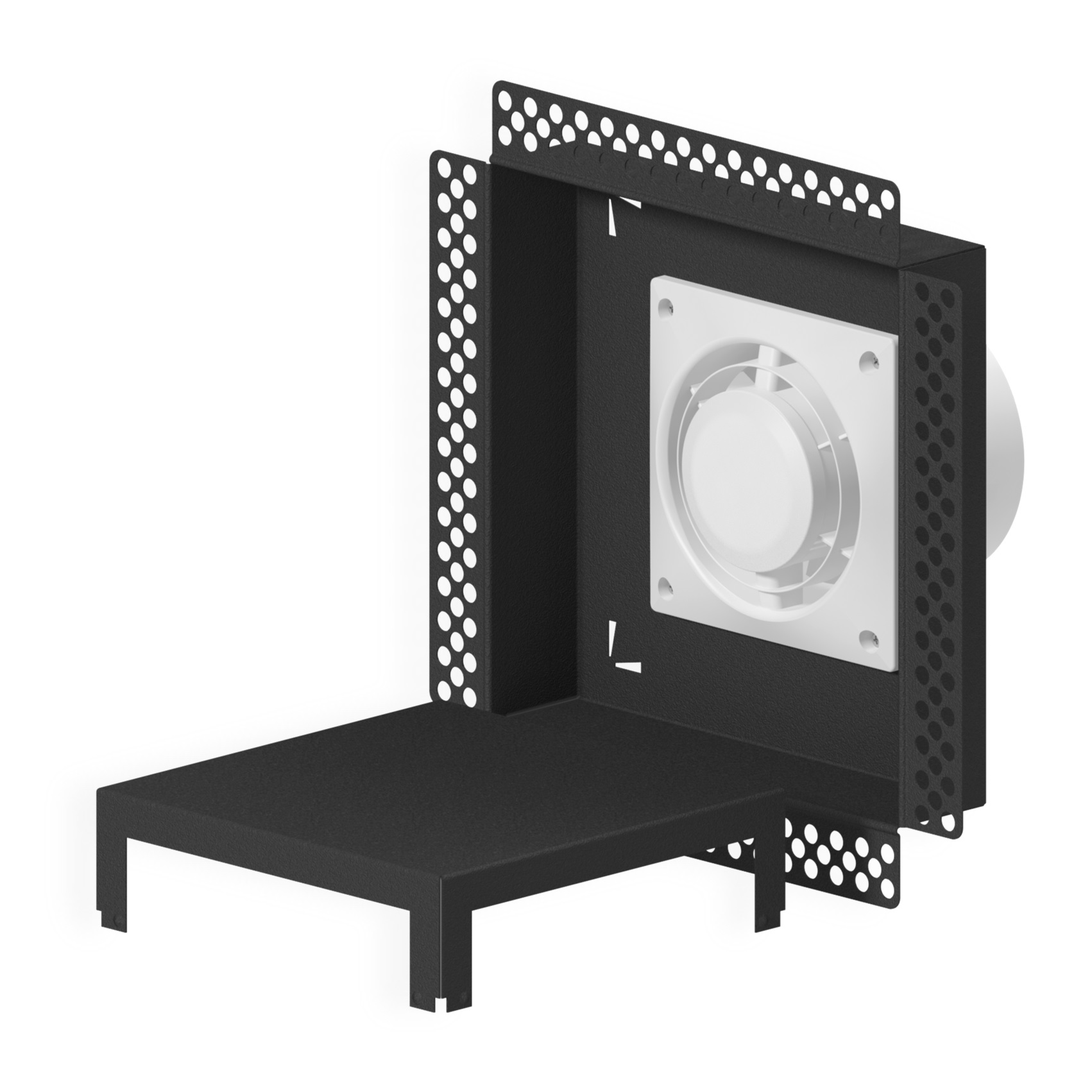

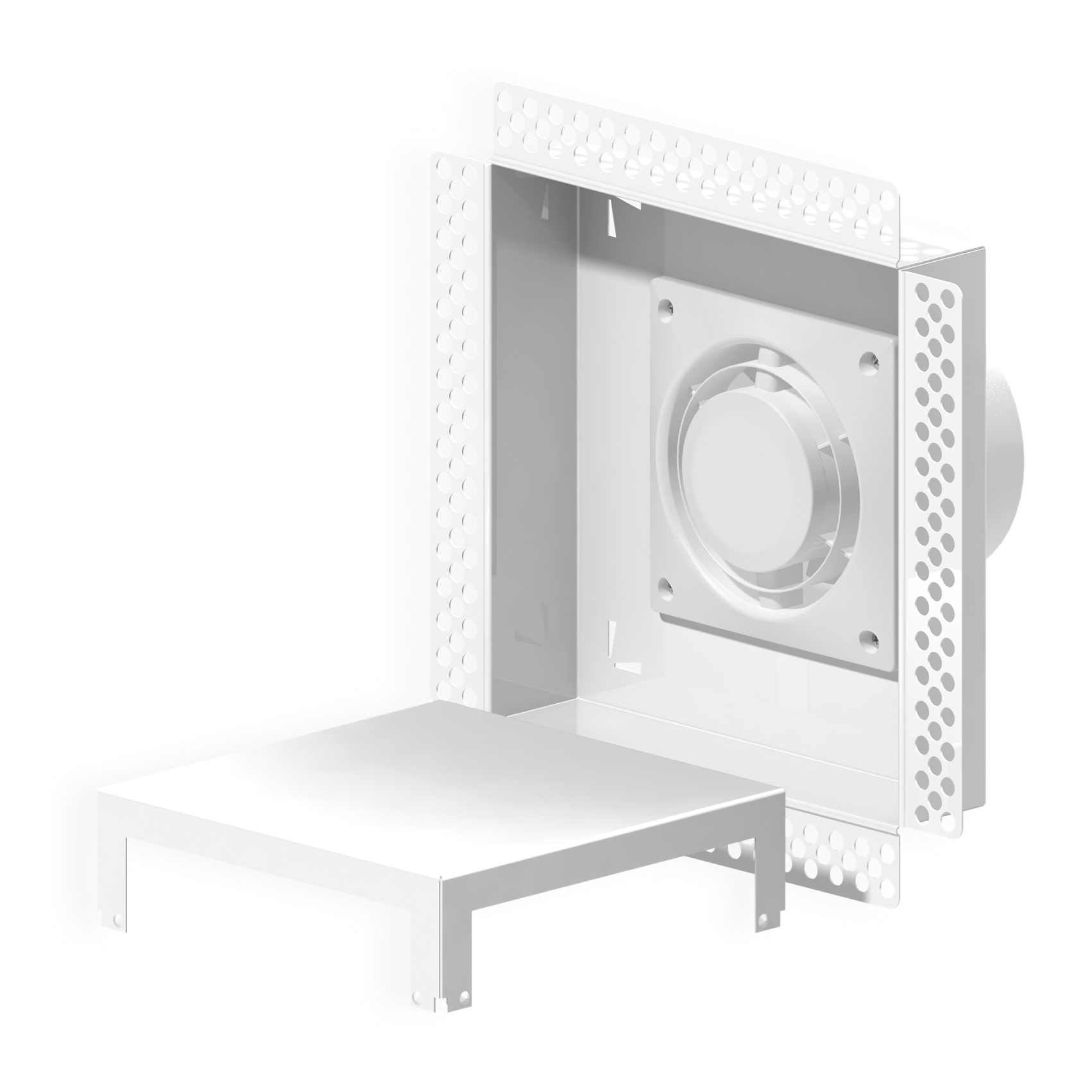

Easily removable front cover
Metal housing with polymer paint coating
Protection against environmental influences: IPX4

Installation:

Mounting in the wall or ceiling
Fixed with screws and treatment with compounds

Colors: White, anthracite, black, metallic

View products Request Price

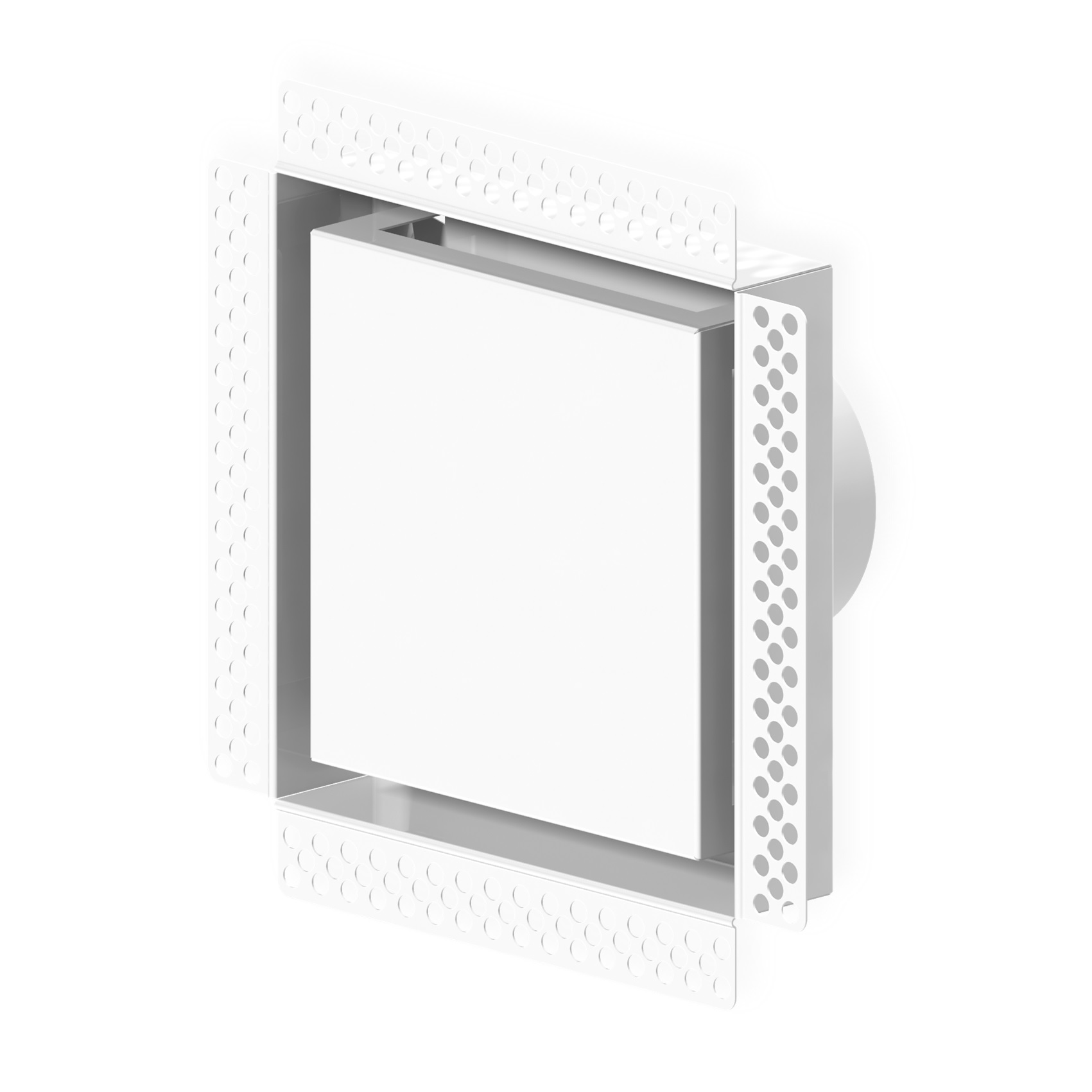

EUROPLAST flush-mounted household electric exhaust fans ESVM are equipped with a metal housing. They are designed for permanent installation in ceilings or walls. The fans can be connected to round air ducts or directly to a ventilation shaft. Their design ensures a modern architectural finish, the covers are suitable for painting, tiling, or covering with decorative materials, and are distinguished by their resistance to moisture and mechanical damage. These products are installed from the room side of the wall.

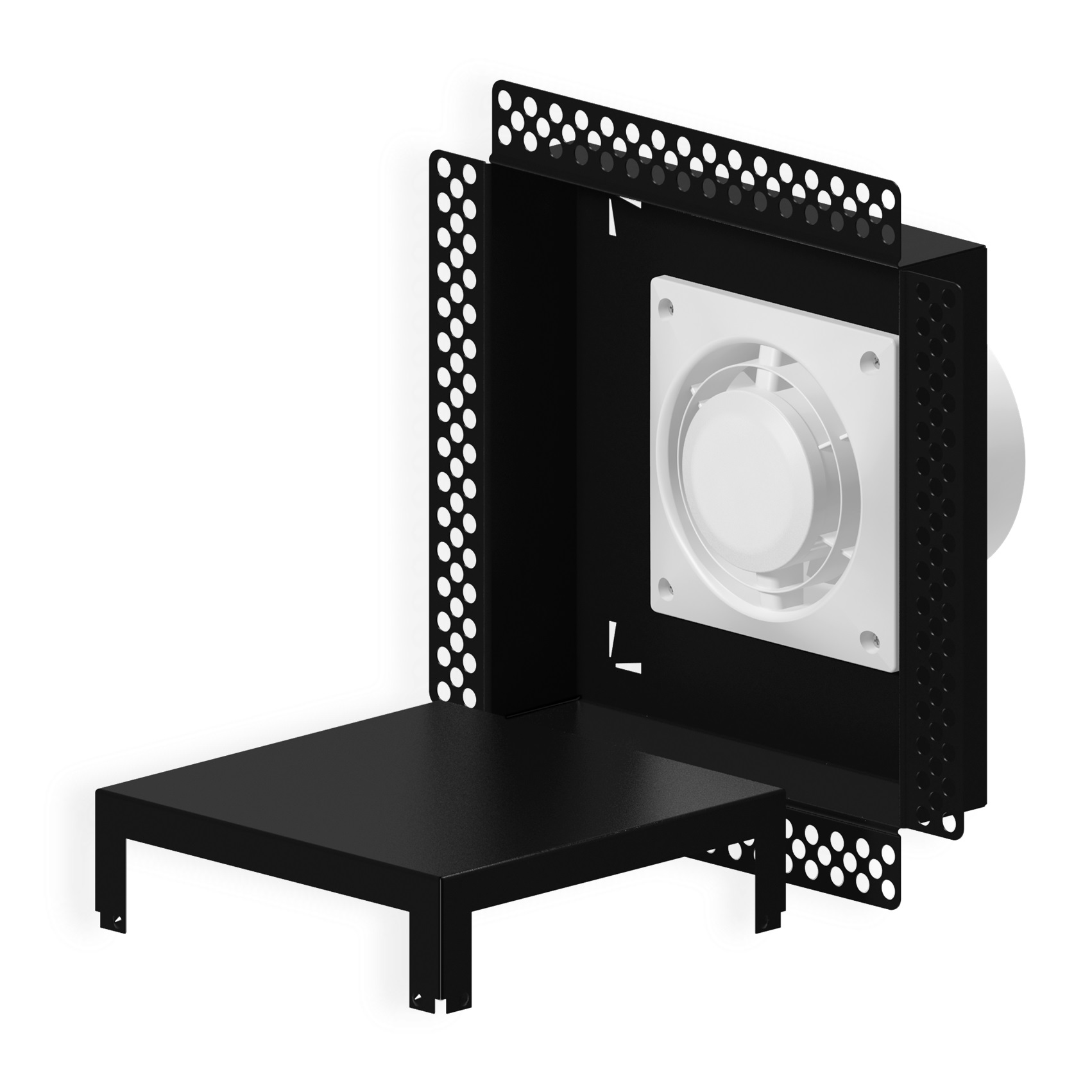

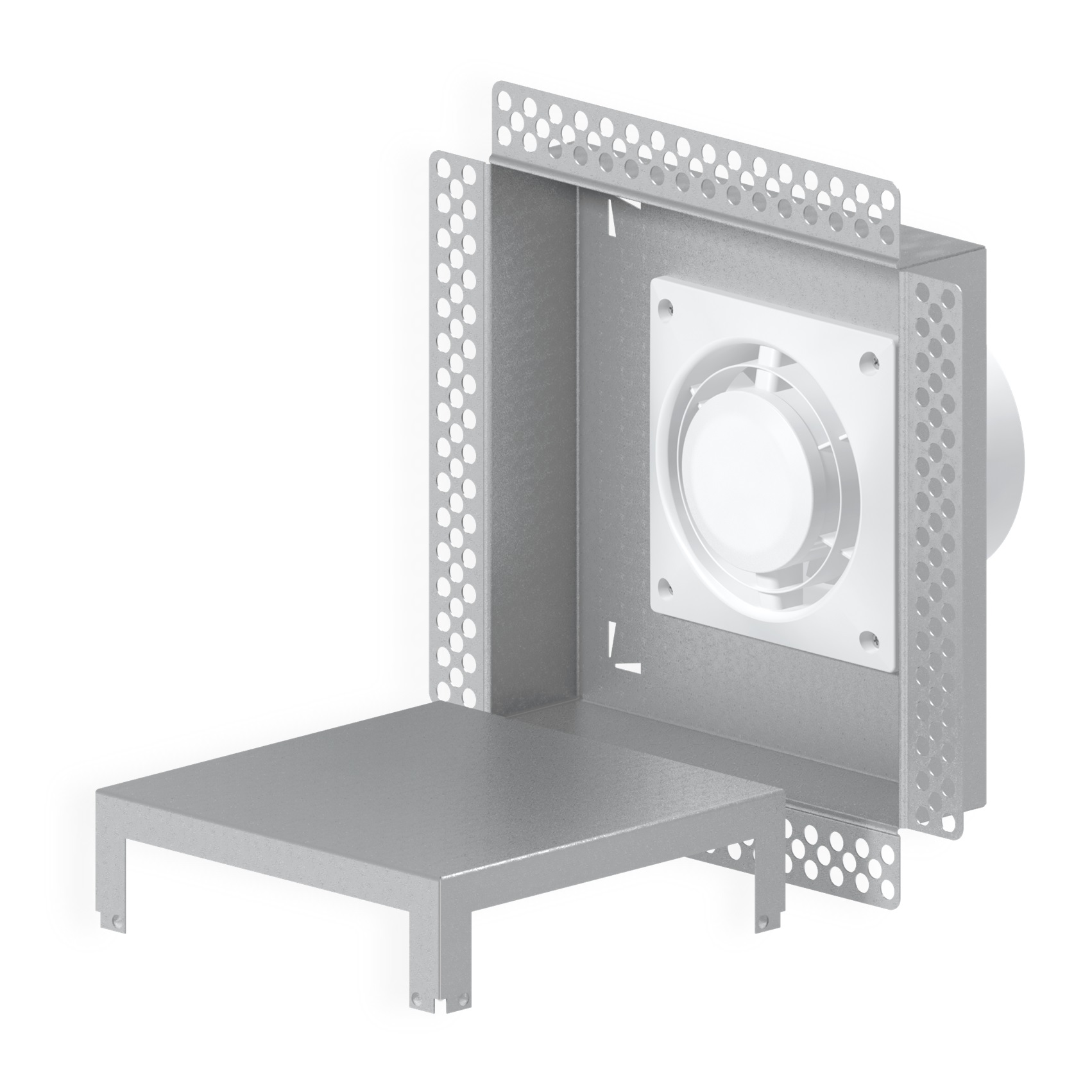

The ESVM fans are equipped with a perforated metal frame for installation, that ensures better adhesion to plaster and joint compounds, as well as a raised edge profile for creating precise and straight finishing lines. The front cover is secured with an efficient mechanism and can be easily removed for routine cleaning and maintenance.

Functions

Timer

The device is equipped with a timer. After switching off the fan, the timer keeps it running for a specific time interval that is set up by a controller. The set operating time after switching off the fan is from 1 to 30 minutes.

Ball bearing

The fan motor is equipped with a ball bearing, which ensures better fan operation and also longevity. Thanks to the ball bearing, the fan can also be used for ceiling mounting.

Humidity sensor

The fan is equipped with a humidity level control that may be used to set the level of humidity from ~60%RH - ~90%RH and a delay control that may be used to set the delay from 1 to 30 min. The fan is turned on automatically when a certain humidity level is reached in the room or it may be turned on manually by a switch.

	Description	Width	Height	Connection	Suction power	Depth
ESVM100A	electric fan, flush-mounted, 200x200mm - Ø100mm, anthracite	200 mm	200 mm	Ø 100 mm	95 m3/h	42 mm
ESVM100M	electric fan, flush-mounted, 200x200mm - Ø100mm, black	200 mm	200 mm	Ø 100 mm	95 m3/h	42 mm
ESVM100Zn	electric fan, flush-mounted, 200x200mm - Ø100mm, galvanized	200 mm	200 mm	Ø 100 mm	95 m3/h	42 mm
ESVM100	electric fan, flush-mounted, 200x200mm - Ø100mm, white	200 mm	200 mm	Ø 100 mm	95 m3/h	42 mm
ESVM100TA	electric fan, flush-mounted, 200x200mm - Ø100mm, with a timer, anthracite	200 mm	200 mm	Ø 100 mm	95 m3/h	42 mm
ESVM100TM	electric fan, flush-mounted, 200x200mm - Ø100mm, with a timer, black	200 mm	200 mm	Ø 100 mm	95 m3/h	42 mm
ESVM100TZn	electric fan, flush-mounted, 200x200mm - Ø100mm, with a timer, galvanized	200 mm	200 mm	Ø 100 mm	95 m3/h	42 mm
ESVM100HTA	electric fan, flush-mounted, 200x200mm - Ø100mm, with a timer, humidity sensor, anthracite	200 mm	200 mm	Ø 100 mm	95 m3/h	42 mm
ESVM100HTM	electric fan, flush-mounted, 200x200mm - Ø100mm, with a timer, humidity sensor, black	200 mm	200 mm	Ø 100 mm	95 m3/h	42 mm
ESVM100HTZn	electric fan, flush-mounted, 200x200mm - Ø100mm, with a timer, humidity sensor, galvanized	200 mm	200 mm	Ø 100 mm	95 m3/h	42 mm

Modifications

ESVMxxx – Base model fan, white color, RAL9016 polymer coating

ESVMxxxT – The fan is equipped with a delay timer function

ESVMxxxHT – The fan is equipped with a humidity sensor and a delay timer functions

ESVMxxxA – Anthracite color, polymer coating

ESVMxxxM – Black color, RAL9005 polymer coating

ESVMxxxZn – Unpainted, metallic, galvanized steel

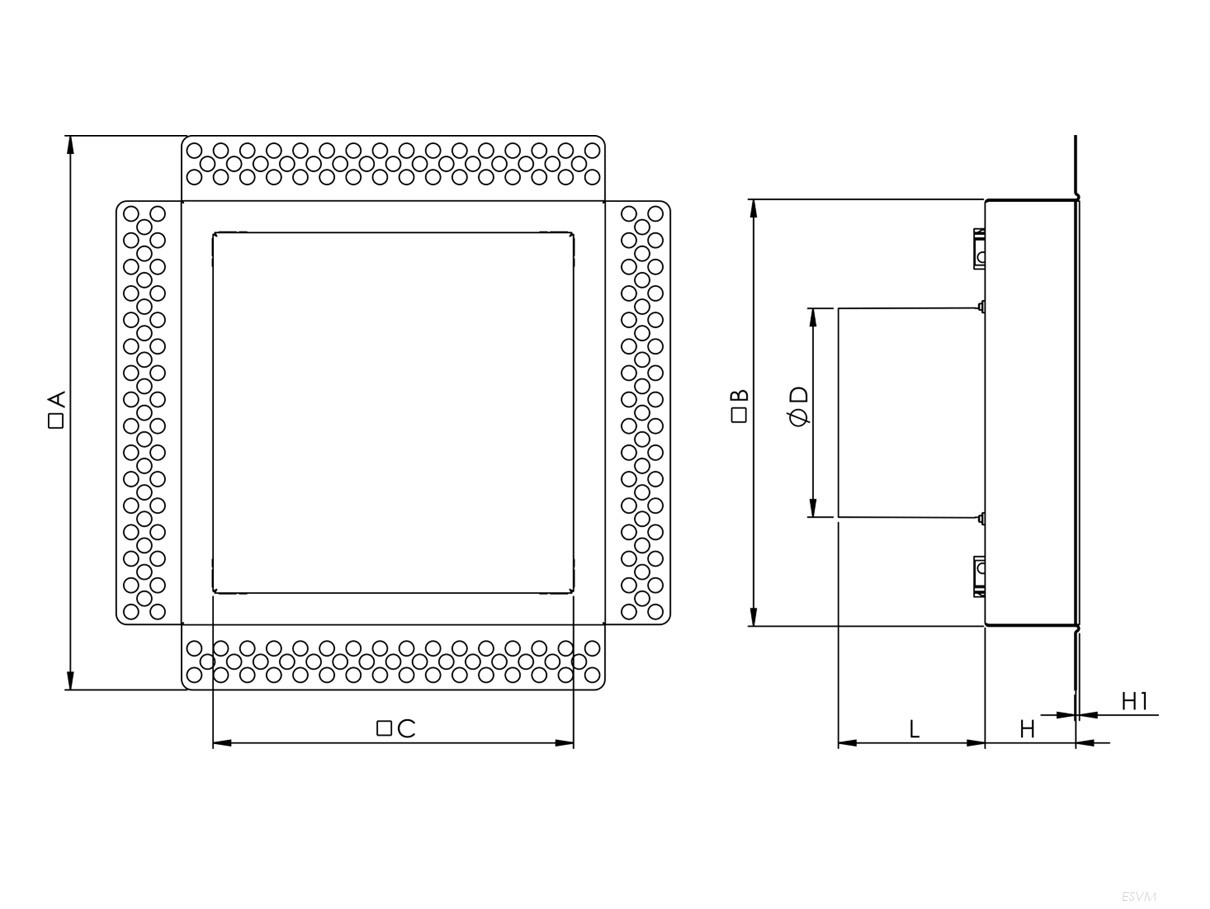

Type	□A [mm]	□B [mm]	□C [mm]	ØD [mm]	L [mm]	H [mm]	H1 [mm]	m (kg)
ESVM100	261	201	170	98	69	42	2,2	1,1
ESVM125	311	251	220	123	69	42	2,2	1,4
ESVM150	361	301	270	148	69	42	2,2	1,9

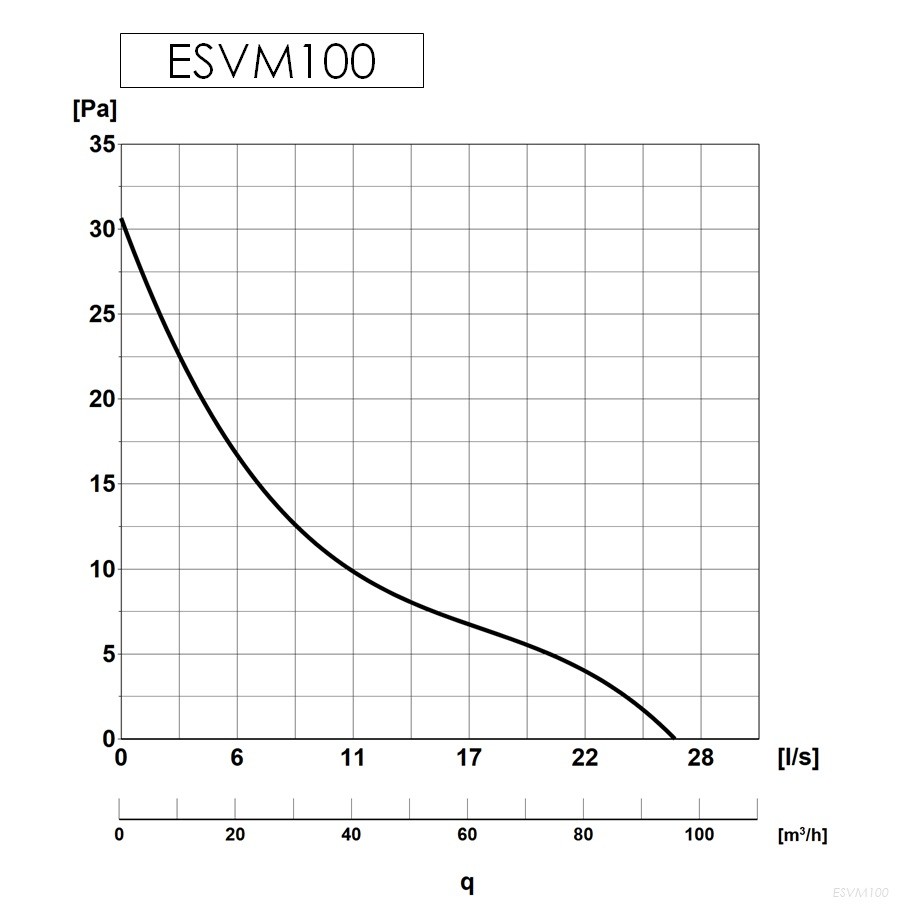

Type	Voltage (V) - Phase (Hz)	Power (W)	Air flow rate (free blowing) [m³/h]	Noise level: 3m distance, L_p A dB(A)	Protection against environmental factor	RPM	Ambient temperature [°C]	Nominal diameter of the air duct (mm)
ESVM100	220-240V~ 50Hz	15	95	32	IPX4	2550	+5 ... +40	100

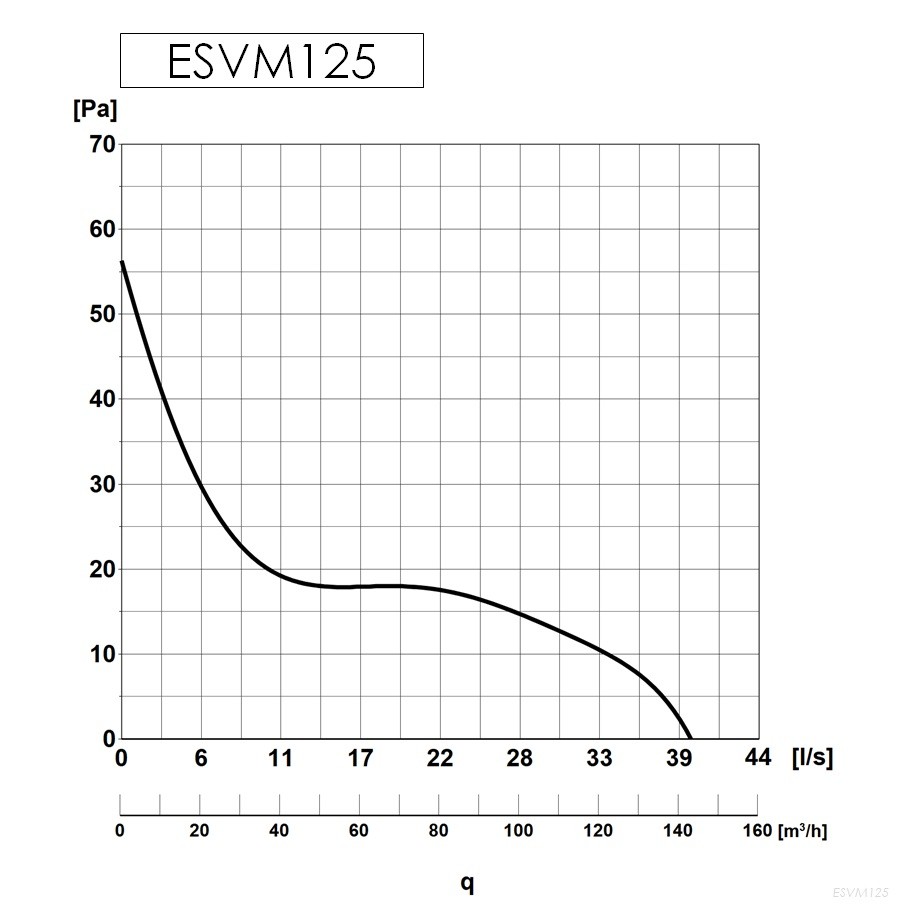

ESVM125	220-240V~ 50Hz	16	143	36	IPX4	2360	+5 ... +40	125

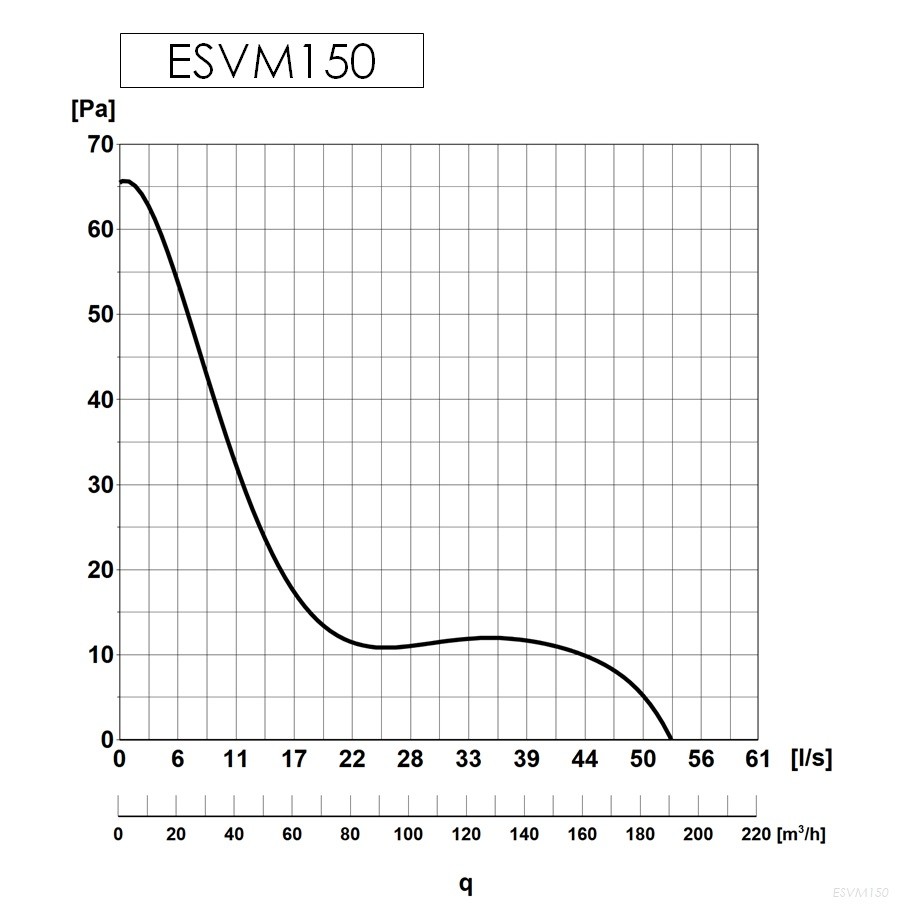

ESVM150	220-240V~ 50Hz	20	190	40	IPX4	2100	+5 ... +40	150
